		<title>Faulty HDMI in Your Classroom? Simple Checks Before You Call</title>
		<link>https://dibaustralia.com.au/troubleshooting-hdmi-and-vga-cable-issues/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=troubleshooting-hdmi-and-vga-cable-issues</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Wed, 28 Oct 2026 00:46:01 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[Service & Repair]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=10760</guid>

					<description><![CDATA[<p>In short: most classroom HDMI faults come from the short cable you plug in (the fly lead), the adapter, the laptop&#8217;s display setting or the wrong input.  How your classroom HDMI connects Usually your laptop plugs into an HDMI wall plate with a short cable called a fly lead. A cable inside the wall runs [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/troubleshooting-hdmi-and-vga-cable-issues/">Faulty HDMI in Your Classroom? Simple Checks Before You Call</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p><b>In short:</b><span style="font-weight: 400;"> most classroom HDMI faults come from the short cable you plug in (the fly lead), the adapter, the laptop&#8217;s display setting or the wrong input. </span></p>
<div class="wpcmsdev-box">
<div class="box-content">
<p><span style="font-weight: 400;">Try these checks first. If they don&#8217;t fix it, </span><a href="https://dibaustralia.com.au/service/service/"><span style="font-weight: 400;">log a service request</span></a><span style="font-weight: 400;">.</span><span style="font-weight: 400;"><br />
</span><span style="font-weight: 400;"><br />
</span><b>Direct Service Phone: </b><span style="font-weight: 400;">03 9459 0000</span><span style="font-weight: 400;"><br />
</span><b>Email:</b><span style="font-weight: 400;"> service@dibaustralia.com.au </span></p>
</div>
</div>
<h2><span style="font-weight: 400;">How your classroom HDMI connects</span></h2>
<p><span style="font-weight: 400;">Usually your laptop plugs into an HDMI wall plate with a short cable called a fly lead. A cable inside the wall runs from the plate to the projector or screen. A fault anywhere along that chain stops the picture. These checks work out which part it is.</span></p>
<h2><span style="font-weight: 400;">1. Swap the fly lead (most common fix)</span></h2>
<p><span style="font-weight: 400;">The fly lead gets plugged in and out every day, so it wears out first. The wires can break inside the plug while the cable looks fine.</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">Try a different fly lead you know works.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Use a short one: 2 metres or less, and the shorter the better.</b><span style="font-weight: 400;"> A long fly lead plus the cable in the wall can be too long for modern high-resolution signals, and the picture drops out.</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">If the picture comes and goes when you wiggle the plug at the wall plate, the plate is likely faulty. That&#8217;s a service job. Don&#8217;t take plates off the wall.</span></li>
</ul>
<h2><span style="font-weight: 400;">2. Remove or swap the adapter</span></h2>
<p><span style="font-weight: 400;">USB-C to HDMI adapters cause many problems. Try a different adapter, or a laptop with its own HDMI port. (See </span><a href="https://dibaustralia.com.au/hdmi-vs-usb-c-whats-the-difference/"><span style="font-weight: 400;">HDMI vs USB-C</span></a><span style="font-weight: 400;">.)</span></p>
<h2><span style="font-weight: 400;">3. Check the laptop is sending a picture</span></h2>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Windows:</b><span style="font-weight: 400;"> press the Windows key and P together, then choose </span><b>Duplicate</b><span style="font-weight: 400;">.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Mac:</b><span style="font-weight: 400;"> open System Settings, then Displays, and turn on mirroring.</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">In the display settings, check that the laptop shows a second screen. If it doesn&#8217;t, the laptop can&#8217;t see the projector or screen at all. That points to the fly lead, the adapter, the wall plate or the cable.</span></li>
</ul>
<h2><span style="font-weight: 400;">4. Try another laptop</span></h2>
<p><span style="font-weight: 400;">Borrow a colleague&#8217;s laptop, ideally a different brand with its own HDMI port. If two different laptops and a known-good short fly lead still don&#8217;t work, the fault is past the wall plate: the cable in the wall, the switcher, or the projector or screen.</span></p>
<h2><span style="font-weight: 400;">5. Check the input</span></h2>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Wall control panel:</b><span style="font-weight: 400;"> make sure the right input is selected. Try the other inputs too, because the labels aren&#8217;t always right.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>No control panel, but more than one HDMI plate:</b><span style="font-weight: 400;"> there may be an automatic switcher in the equipment rack. Don&#8217;t adjust it unless you know the system. That&#8217;s a job for us.</span></li>
</ul>
<h2><span style="font-weight: 400;">When to call us</span></h2>
<p><span style="font-weight: 400;">Call us if you&#8217;ve tried a short known-good fly lead, no adapter, and two laptops, and there&#8217;s still no picture. Also call if the wall plate is loose, or the picture drops in and out. </span></p>
<div class="wpcmsdev-box">
<div class="box-content">
<p><a href="https://dibaustralia.com.au/service/log-a-service-request/"><span style="font-weight: 400;">Log a service request</span><span style="font-weight: 400;"><br />
</span><span style="font-weight: 400;"><br />
</span></a><b>Direct Service Phone: </b><span style="font-weight: 400;">03 9459 0000</span><span style="font-weight: 400;"><br />
</span><b>Email:</b><span style="font-weight: 400;"> service@dibaustralia.com.au </span></p>
</div>
</div>
<p><b>Related articles:</b><a href="https://dibaustralia.com.au/projector-no-signal-in-classrooms-how-to-fix-it/"> <span style="font-weight: 400;">Projector No Signal</span></a><span style="font-weight: 400;"> ·</span><a href="https://dibaustralia.com.au/av-control-panel-not-responding-troubleshooting-tips-for-schools/"> <span style="font-weight: 400;">AV Control Panel Not Responding? Troubleshooting Tips for Schools</span></a></p>
<p>The post <a href="https://dibaustralia.com.au/troubleshooting-hdmi-and-vga-cable-issues/">Faulty HDMI in Your Classroom? Simple Checks Before You Call</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Mic Not Working in Your School Hall or Classroom? What to Check</title>
		<link>https://dibaustralia.com.au/troubleshooting-sound-issues-with-mipro-receiver/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=troubleshooting-sound-issues-with-mipro-receiver</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Wed, 28 Oct 2026 00:00:15 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[Service & Repair]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=10742</guid>

					<description><![CDATA[<p>In short: most school microphone problems come down to a flat battery, a muted mic, a muted system, or the way the mic is being held. These checks take a few minutes and can save you a service call. These are simple checks for staff, not a technician&#8217;s guide. Look at the equipment rack, but [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/troubleshooting-sound-issues-with-mipro-receiver/">Mic Not Working in Your School Hall or Classroom? What to Check</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p><b>In short:</b><span style="font-weight: 400;"> most school microphone problems come down to a flat battery, a muted mic, a muted system, or the way the mic is being held. These checks take a few minutes and can save you a service call.</span></p>
<div class="wpcmsdev-box">
<div class="box-content">
<p><span style="font-weight: 400;">If they don&#8217;t fix it, </span><a href="https://dibaustralia.com.au/service/service/"><span style="font-weight: 400;">log a service request</span></a><span style="font-weight: 400;"> and we&#8217;ll sort it out.</span></p>
<p><b>Direct Service Phone: </b><span style="font-weight: 400;">03 9459 0000</span><span style="font-weight: 400;"><br />
</span><b>Email:</b> <a href="mailto:service@dibaustralia.com.au"><span style="font-weight: 400;">service@dibaustralia.com.au</span></a></p>
</div>
</div>
<p><span style="font-weight: 400;">These are simple checks for staff, not a technician&#8217;s guide. Look at the equipment rack, but never open, unplug or change anything inside it.</span></p>
<h2><span style="font-weight: 400;">1. Does the microphone have power?</span></h2>
<p><span style="font-weight: 400;">Turn the mic on. Look for a light or a small screen on the mic.</span></p>
<p><span style="font-weight: 400;">If nothing comes on, the battery is probably flat.</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Replaceable batteries:</b><span style="font-weight: 400;"> many school wireless mics take AA batteries. Fit fresh ones the right way round and try again.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Rechargeable mics:</b><span style="font-weight: 400;"> put the mic in its charging cradle and check the charging light comes on. No light? Check the cradle is plugged in and switched on at the wall.</span></li>
</ul>
<p><i><span style="font-weight: 400;">Mic not charging?</span></i><span style="font-weight: 400;"> Reseat the mic in the cradle and try another slot. If a good mic charges but this one doesn&#8217;t, the battery or mic needs replacing. Log a service request.</span></p>
<h2><span style="font-weight: 400;">2. Is it on mute?</span></h2>
<p><span style="font-weight: 400;">This catches lots of people. Many mics have a mute switch or button. On some, a short press of the power button mutes the mic instead of turning it off. The mic looks on but sends no sound.</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">Look for &#8220;MUTE&#8221; on the mic&#8217;s screen, or a mute light.</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">Flick the switch or press the button once, then test again.</span></li>
</ul>
<h2><span style="font-weight: 400;">3. Check the receiver screen (it tells you a lot)</span></h2>
<p><span style="font-weight: 400;">Wireless mics send to a receiver, usually in the AV rack. Each mic has its own receiver, or its own half of a twin receiver. You can learn a lot just by looking at its screen. Don&#8217;t press any buttons.</span></p>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2017/07/Sennheiser-receiver.png"><img decoding="async" class="alignnone size-medium wp-image-13777" src="https://dibaustralia.com.au/wp-content/uploads/2017/07/Sennheiser-receiver-300x87.png" alt="Sennheiser mic receiver" width="300" height="87" srcset="https://dibaustralia.com.au/wp-content/uploads/2017/07/Sennheiser-receiver-300x87.png 300w, https://dibaustralia.com.au/wp-content/uploads/2017/07/Sennheiser-receiver.png 512w" sizes="(max-width: 300px) 100vw, 300px" /></a></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Turn the mic off and on.</b><span style="font-weight: 400;"> The matching receiver screen should come alive when the mic is on. This also shows you which receiver belongs to which mic. If nothing changes, the mic is flat, or it isn&#8217;t paired with that receiver. Call us.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Battery:</b><span style="font-weight: 400;"> most screens show a battery level, usually bottom right. Low means charge or change the batteries.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>MUTE on the screen:</b><span style="font-weight: 400;"> the mic itself is muted. Go back to step 2.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Signal bar:</b><span style="font-weight: 400;"> one bar shows how strong the mic&#8217;s signal is. If it is low or empty while the mic is on, see &#8220;Sound drops in and out&#8221; below.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Sound bar:</b><span style="font-weight: 400;"> another bar jumps when you speak. If it jumps when you talk, the mic is fine. The problem is further down the system (step 4).</span></li>
<li style="font-weight: 400;" aria-level="1"><b>It jumps when you tap the mic, but not when you talk:</b><span style="font-weight: 400;"> the mic has probably been dropped and damaged. Use a spare mic and log a service request.</span></li>
</ul>
<h2><span style="font-weight: 400;">4. Is the system on, and is the volume up?</span></h2>
<p><span style="font-weight: 400;">If the receiver shows sound coming in, the problem is further along.</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Control panel:</b><span style="font-weight: 400;"> check the system is on, the mic isn&#8217;t muted, the mic volume is up, and the right room is selected.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Mixing desk:</b><span style="font-weight: 400;"> each mic has its own channel. Check that channel isn&#8217;t muted and its level and the main level are up. If the desk isn&#8217;t labelled, stop and call us.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Still nothing?</b><span style="font-weight: 400;"> The amplifiers may be off, or something deeper in the system has a fault. Call us.</span></li>
</ul>
<h2><span style="font-weight: 400;">Sound drops in and out?</span></h2>
<p><span style="font-weight: 400;">Usually a signal problem. Check how the mic is held first.</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Don&#8217;t hold the mic by the bottom.</b><span style="font-weight: 400;"> The aerial is in the base of most handheld mics. Holding it there can cut the signal by about half and cause dropouts. Hold it halfway up and the problem often disappears.</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">Try fresh batteries, and stand closer to the receiver.</span></li>
</ul>
<p><span style="font-weight: 400;">If it still drops out, it may need a clearer channel, better aerials, or a receiver setting adjusted. That&#8217;s a service job.</span></p>
<h2><span style="font-weight: 400;">Squealing or howling (feedback)?</span></h2>
<p><span style="font-weight: 400;">Feedback always means something is turned up too high. Try these on the spot:</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><b>Move away from the speakers.</b><span style="font-weight: 400;"> Don&#8217;t walk in front of them with the mic.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Turn the mic down</b><span style="font-weight: 400;"> on the control panel.</span></li>
<li style="font-weight: 400;" aria-level="1"><b>Hold the mic halfway up,</b><span style="font-weight: 400;"> not around the ball. Mics are designed to ignore sound from behind. Cupping the ball blocks that and makes feedback much more likely.</span></li>
</ul>
<p><span style="font-weight: 400;">We set school mics up so they shouldn&#8217;t squeal, even at full volume on the control panel. If yours squeals at normal volume, a setting inside the mic has probably been changed. Log a service request and we&#8217;ll reset it.</span></p>
<h2><span style="font-weight: 400;">Are your wireless mics old?</span></h2>
<p><span style="font-weight: 400;">Since 1 January 2015, it has been illegal in Australia to use wireless microphones in the 694 to 820 MHz band. That band was sold for 4G mobile. Older mics on those frequencies clash with mobile signals and work poorly. If your mics are about 10 years old or more, check the frequency on the label or receiver. If it&#8217;s in that band, you need new mics, not a repair. </span><a href="https://dibaustralia.com.au/service/service/"><span style="font-weight: 400;">Ask us about an upgrade</span></a><span style="font-weight: 400;">.</span></p>
<h2><span style="font-weight: 400;">When to call us</span></h2>
<p><span style="font-weight: 400;">Call us if:</span></p>
<ul>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">you&#8217;ve checked power, mute and volume and the mic still doesn&#8217;t work</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">the receiver screen doesn&#8217;t come alive when the mic is turned on</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">the sound keeps dropping out, or the mic squeals at normal volume</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">the mic picks up taps but not voices</span></li>
<li style="font-weight: 400;" aria-level="1"><span style="font-weight: 400;">your mics are old</span></li>
</ul>
<p><span style="font-weight: 400;">If any check feels too technical, stop there and call us. That&#8217;s what we&#8217;re here for.</span></p>
<p><span style="font-weight: 400;">If your system is so complicated that staff struggle to use it, that isn&#8217;t a service fault. It&#8217;s a sign the system needs simplifying, and that&#8217;s something we specialise in. </span></p>
<div class="wpcmsdev-box">
<div class="box-content">
<p><a href="https://dibaustralia.com.au/service/log-a-service-request/"><b>Log a service request</b></a></p>
<p><b>Direct Service Phone: </b><span style="font-weight: 400;">03 9459 0000</span><span style="font-weight: 400;"><br />
</span><b>Email:</b> <a href="mailto:service@dibaustralia.com.au"><span style="font-weight: 400;">service@dibaustralia.com.au</span></a></p>
</div>
</div>
<p><span style="font-weight: 400;">Related: </span><a href="https://dibaustralia.com.au/school-av-audio-problems-simple-checks-when-theres-no-sound/"><span style="font-weight: 400;">No sound from your school AV system</span></a><span style="font-weight: 400;"> · </span><a href="https://dibaustralia.com.au/av-control-panel-not-responding-troubleshooting-tips-for-schools/"><span style="font-weight: 400;">AV control panel not responding</span></a></p>
<p>The post <a href="https://dibaustralia.com.au/troubleshooting-sound-issues-with-mipro-receiver/">Mic Not Working in Your School Hall or Classroom? What to Check</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>School AV Audio Problems: Simple Checks When There&#8217;s No Sound</title>
		<link>https://dibaustralia.com.au/school-av-audio-problems-simple-checks-when-theres-no-sound/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=school-av-audio-problems-simple-checks-when-theres-no-sound</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Fri, 23 Oct 2026 05:57:01 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[Service & Repair]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13749</guid>

					<description><![CDATA[<p>The picture is on the screen, but there&#8217;s no sound. Or the hall speakers have gone quiet just before assembly. Most of the time the cause is a setting or a loose cable, and the fix takes a minute. How the sound gets to the speakers In most classrooms, sound travels from your laptop or [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/school-av-audio-problems-simple-checks-when-theres-no-sound/">School AV Audio Problems: Simple Checks When There&#8217;s No Sound</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>The picture is on the screen, but there&#8217;s no sound. Or the hall speakers have gone quiet just before assembly. Most of the time the cause is a setting or a loose cable, and the fix takes a minute.</p>
<div class="wpcmsdev-box">
<div class="box-content">
<p>Work through these checks in order. Each one is something you can do from the floor. If none of them work, <a href="https://dibaustralia.com.au/service/service/">log a service request</a> and we&#8217;ll sort it out.</p>
<p><b>Direct Service Phone: </b>03 9459 0000<br />
<b>Email:</b> <a href="mailto:service@dibaustralia.com.au">service@dibaustralia.com.au</a></p>
</div>
</div>
<h2>How the sound gets to the speakers</h2>
<p>In most classrooms, sound travels from your laptop or the room PC, through a cable to the wall plate or TV, and then to the speakers. Some speakers have their own power. Others are run by a small amplifier hidden near the projector, behind the TV or in the ceiling. The checks below find where the sound is stopping.</p>
<h2>1. Check the volume and mute</h2>
<p>This is the most common cause.</p>
<ul>
<li aria-level="1"><b>On your laptop:</b> check the volume is up and not muted. Check the sound is going to the TV or &#8220;HDMI&#8221; output, not the laptop&#8217;s own speakers.</li>
<li aria-level="1"><b>On the wall control panel or remote:</b> check the volume is up and the mute light is off.</li>
</ul>
<h2>2. Check the right input is selected</h2>
<p>On the wall control panel or remote, check the input matches what you&#8217;re using, for example &#8220;Laptop&#8221; or &#8220;PC&#8221;. If you&#8217;re not sure, try each one.</p>
<h2>3. Try another source</h2>
<p>Play sound from a different device, for example the room PC instead of your laptop.</p>
<p>If one source has sound and another doesn&#8217;t, the speakers and the amplifier are working. The problem is with that device, its settings or its cable. Try a different laptop or cable.</p>
<h2>4. Check the speakers have power</h2>
<p>Some speakers plug into their own power point. If you can reach it, check it is switched on and the plug hasn&#8217;t been pulled out. If the power point is in the ceiling, leave it and call us.</p>
<h2>5. Check the cables you can reach</h2>
<p>Cables are easily knocked out, often by students or when someone plugs in their own laptop.</p>
<ul>
<li aria-level="1">Check the cable from your laptop to the wall plate is pushed in at both ends.</li>
<li aria-level="1">If the TV is at a height you can reach, check the audio cable at the back of the TV is pushed in firmly.</li>
</ul>
<p>Don&#8217;t move a projector or climb up to reach a cable.</p>
<h2>6. TVs only: test the TV&#8217;s own speakers</h2>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-scaled.jpg"><img fetchpriority="high" decoding="async" class="alignnone size-full wp-image-13751" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-scaled.jpg" alt="test built in speakers" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/test-built-in-speakers-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>Most TVs have built-in speakers. In the TV&#8217;s menu, change the speaker setting to the TV speakers, then play something.</p>
<p>If you hear sound, your laptop and the TV are working. The problem is in the room speakers or the amplifier. Change the setting back and call us.</p>
<h2>Crackling, hissing or popping?</h2>
<p>Turn the volume down and log a service request. Tell us when it happens: all the time, only with one device, or only when a cable moves. That helps us find it faster.</p>
<h2>Hall or gym sound system</h2>
<p>If the whole system is silent, check the volume on the wall panel, then call us.</p>
<h2>When to call us</h2>
<p>If the volume is up, the right input is on, the speakers have power and the cables are in, the fault is in the installed system. That&#8217;s a job for a technician.</p>
<p>Many classroom speakers are run by a separate amplifier. It may be in the ceiling, on top of the projector or behind the TV. The amplifier is more likely to be the problem than the speakers.</p>
<div class="wpcmsdev-box">
<div class="box-content">
<p>When you call, tell us the room, which sources work and what you&#8217;ve tried. Please don&#8217;t open the ceiling, climb a ladder or take equipment apart. We&#8217;ll find the fault quickly and safely.</p>
<p><strong><a href="https://dibaustralia.com.au/service/log-a-service-request/">Log a service request</a></strong></p>
<p><b>Direct Service Phone: </b>03 9459 0000<br />
<b>Email:</b> <a href="mailto:service@dibaustralia.com.au">service@dibaustralia.com.au</a></p>
</div>
</div>
<p>&nbsp;</p>
<p>The post <a href="https://dibaustralia.com.au/school-av-audio-problems-simple-checks-when-theres-no-sound/">School AV Audio Problems: Simple Checks When There&#8217;s No Sound</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Projector No Signal in Classrooms: How to Fix It</title>
		<link>https://dibaustralia.com.au/projector-no-signal-in-classrooms-how-to-fix-it/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=projector-no-signal-in-classrooms-how-to-fix-it</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Fri, 23 Oct 2026 04:28:41 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[Service & Repair]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13742</guid>

					<description><![CDATA[<p>You&#8217;re ready to start a lesson and the projector says &#8220;no signal&#8221;. Most of the time the fix takes a minute. Work through these checks in order. What &#8220;no signal&#8221; means The projector is on and working, but no picture is reaching it. Somewhere between your laptop and the projector, the signal has stopped. These [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/projector-no-signal-in-classrooms-how-to-fix-it/">Projector No Signal in Classrooms: How to Fix It</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>You&#8217;re ready to start a lesson and the projector says &#8220;no signal&#8221;. Most of the time the fix takes a minute. Work through these checks in order.</p>
<div class="wpcmsdev-box">
<div class="box-content">
<p>If none of them work, <a href="https://dibaustralia.com.au/service/service/">log a service request</a> and we&#8217;ll sort it out.</p>
<p><b>Direct Service Phone: </b>03 9459 0000<br />
<b>Email:</b> <a href="mailto:service@dibaustralia.com.au">service@dibaustralia.com.au</a></p>
</div>
</div>
<h2>What &#8220;no signal&#8221; means</h2>
<p>The projector is on and working, but no picture is reaching it. Somewhere between your laptop and the projector, the signal has stopped. These checks find where.</p>
<h2>1. Check the input on the control panel</h2>
<p>This is the most common cause. Look at the wall control panel or touch panel and check that the right input is selected, for example &#8220;Laptop&#8221; or &#8220;HDMI&#8221;. If you&#8217;re not sure which one is yours, try each input in turn. Labels aren&#8217;t always right.</p>
<h2>2. Check your laptop is sending a picture</h2>
<p>Your laptop may not be sending its screen to the projector.</p>
<ul>
<li aria-level="1"><b>Windows:</b> press the Windows key and P together, then choose <b>Duplicate</b>.</li>
<li aria-level="1"><b>Mac:</b> open System Settings, then Displays, and turn on mirroring.</li>
</ul>
<p>If your laptop doesn&#8217;t show a second screen at all, it can&#8217;t see the projector. Go to step 3.</p>
<h2>3. Swap the fly lead and remove any adapter</h2>
<p>The fly lead is the short HDMI cable from your laptop to the wall plate. It&#8217;s plugged in and out every day, so it wears out first.</p>
<ul>
<li aria-level="1">Try a fly lead you know works. Use a short one, 2 metres or less.</li>
<li aria-level="1">If you use a USB-C to HDMI adapter, try a different adapter, or a laptop with its own HDMI port. Adapters cause a lot of no signal problems.</li>
<li aria-level="1">Try a different laptop. If a second laptop works, the problem is with the first laptop, not the room.</li>
</ul>
<h2>4. Using a wireless presenter?</h2>
<p>If you present wirelessly, for example with Vivi, plug your laptop in with the fly lead instead. If the cable works, the room is fine and the problem is with the wireless connection.</p>
<h2>Blue screen, flickering or the picture dropping out?</h2>
<ul>
<li aria-level="1"><b>Projector blue screen:</b> this is usually the projector&#8217;s way of showing &#8220;no signal&#8221;. Use the same checks.</li>
<li aria-level="1"><b>Flickering or the signal dropping out:</b> usually a worn fly lead or a loose plug. Swap the fly lead first. If the picture drops out when you wiggle the plug at the wall plate, the wall plate needs a technician.</li>
<li aria-level="1"><b>A strange or stretched picture:</b> the picture is getting through, but the laptop&#8217;s resolution doesn&#8217;t suit the projector. Choose Duplicate (step 2), or try another laptop.</li>
<li aria-level="1"><b>A lamp warning:</b> that&#8217;s a lamp problem, not a signal problem. Call us.</li>
</ul>
<h2>When to call us</h2>
<p>If you&#8217;ve checked the input, the laptop setting, a known-good fly lead without an adapter, and a second laptop, and there&#8217;s still no signal, the fault is in the installed system. That&#8217;s a job for a technician. Common causes:</p>
<ul>
<li aria-level="1">A faulty wall plate.</li>
<li aria-level="1">The signal box behind the wall plate (an HDBaseT extender) has failed or lost power.</li>
<li aria-level="1">The cable inside the wall or ceiling is damaged. We&#8217;ve even found cables chewed through by rats.</li>
</ul>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-scaled.jpg"><img decoding="async" class="alignnone size-full wp-image-13745" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-scaled.jpg" alt="damaged cabling inside wall" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/damaged-cabling-inside-wall-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>Please don&#8217;t take wall plates off, open the ceiling, or climb a ladder to the projector. We&#8217;ll find the fault quickly and safely.</p>
<div class="wpcmsdev-box">
<div class="box-content">
<p><a href="https://dibaustralia.com.au/service/log-a-service-request/"><b>Log a service request</b></a></p>
<p><b>Direct Service Phone: </b>03 9459 0000<br />
<b>Email:</b> <a href="mailto:service@dibaustralia.com.au">service@dibaustralia.com.au</a></p>
</div>
</div>
<p>The post <a href="https://dibaustralia.com.au/projector-no-signal-in-classrooms-how-to-fix-it/">Projector No Signal in Classrooms: How to Fix It</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>AV Control Panel Not Responding? Troubleshooting Tips for Schools</title>
		<link>https://dibaustralia.com.au/av-control-panel-not-responding-troubleshooting-tips-for-schools/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=av-control-panel-not-responding-troubleshooting-tips-for-schools</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Thu, 15 Oct 2026 00:41:20 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[Service & Repair]]></category>
		<category><![CDATA[Service and Maintenance]]></category>
		<category><![CDATA[Control panel not working]]></category>
		<category><![CDATA[Faulty control panel]]></category>
		<category><![CDATA[Controller unresponsive]]></category>
		<category><![CDATA[Lost connection with controller]]></category>
		<category><![CDATA[controller not responding]]></category>
		<category><![CDATA[Wall controller keeps freezing]]></category>
		<category><![CDATA[Brown out disconnected the panel]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13562</guid>

					<description><![CDATA[<p>You’re ready to start a lesson or presentation, but your classroom control panel isn’t responding. The buttons do nothing, the touchscreen appears frozen, or the projector or display won’t respond to your commands. Before assuming the panel is faulty, there are a few simple checks you can try. Checking the power and observing how the [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/av-control-panel-not-responding-troubleshooting-tips-for-schools/">AV Control Panel Not Responding? Troubleshooting Tips for Schools</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>You’re ready to start a lesson or presentation, but your classroom control panel isn’t responding. The buttons do nothing, the touchscreen appears frozen, or the projector or display won’t respond to your commands.</p>
<p>Before assuming the panel is faulty, there are a few simple checks you can try. Checking the power and observing how the panel responds can help you identify the symptoms and determine whether your IT team or an AV technician needs to investigate.</p>
<div class="wpcmsdev-box">
<div class="box-content">
<p>If your control panel continues to have problems, D.I.B Audio Visual provides <a href="https://dibaustralia.com.au/service/service/">school AV service and repair across Melbourne and Victoria</a> for schools. You can <strong>log a service request</strong> through the following channels:</p>
<p><b>Direct Service Phone: </b>03 9459 0000<br />
<b>Email:</b> <a href="mailto:service@dibaustralia.com.au">service@dibaustralia.com.au</a></p>
</div>
</div>
<h2><b>Why Is My AV Control Panel Not Working?</b></h2>
<p>An AV control panel allows staff to operate classroom or meeting room equipment—such as projectors, displays, audio systems, and source inputs—from one central location.</p>
<p>Control panels generally communicate with equipment via direct control connections (like RS-232) or over a network (often using Power over Ethernet/PoE). When a panel stops working, the culprit is usually power loss, interrupted communication, network configuration changes, or a fault with the controller itself.</p>
<p>Because AV systems vary, the same symptom can have different causes. The aim of these initial checks is to narrow down the problem, not to confirm a fault without further testing.</p>
<h2><b>3 Checks to Try When Your AV Control Panel Is Not Responding</b></h2>
<h3><b>1. Check Whether the Control Panel Has Power</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-scaled.jpg"><img decoding="async" class="alignnone size-full wp-image-13564" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-scaled.jpg" alt="control panel not responding" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/control-panel-not-responding-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>Start by checking whether the panel appears to be receiving power.</p>
<ul>
<li aria-level="1">Look for indicator lights or signs that the touchscreen is active.</li>
<li aria-level="1">If the panel has a display, check whether it is blank, frozen or showing an error message.</li>
<li aria-level="1">Consider whether the problem started after a power interruption or brownout.</li>
</ul>
<p>For power-supply-fed panels, the power supply is often in an awkward or hidden spot—such as behind the screen, near the equipment rack or above the projector in a ceiling space. A common cause of power loss is someone switching off the power supply at the wall without knowing what it is, or the power supply failing while the wall socket itself is still turned on, making wall power look fine while the panel remains dead.</p>
<p><b>Simple check:</b> If accessible, locate the power supply and confirm it is actually plugged in, switched on and working. If the supply is not readily accessible or requires entering ceiling spaces, contact your IT team or AV service provider. Do not enter ceiling spaces or open electrical equipment to investigate the issue yourself.</p>
<h3><b>2. Look for Error Messages or Signs of a Connection Problem</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-scaled.jpg"><img decoding="async" class="alignnone size-full wp-image-13565" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-scaled.jpg" alt="Error message on control panel" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/Error-message-control-panel-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>If the panel appears to have power, check whether it displays an error message or indicates that the system is disconnected. A panel may remain powered on but be unable to communicate with the equipment it controls.</p>
<p>For network-fed panels, a change on the school’s IT network can stop the panel from communicating with the equipment. This is not always a physical cable or switch change—a network routing or VLAN change can cut the panel off from the screen without any physical connections being touched.</p>
<p><b>Simple check:</b> Ask your IT team whether there have been any recent network, switch or VLAN changes that might have affected the AV system.</p>
<p>Observe what happens when you press a button or touchscreen control:</p>
<ul>
<li aria-level="1">Does nothing happen at all?</li>
<li aria-level="1">Does the panel respond, but the projector or display does not?</li>
<li aria-level="1">Does the panel work intermittently?</li>
<li aria-level="1">Does the touchscreen freeze or stop responding after a period of use?</li>
</ul>
<p>Note any error messages and which functions are affected. These observations can help your IT team or AV technician narrow down the possible causes.</p>
<h3><b>3. Check Whether the Buttons or Touchscreen Respond</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-scaled.jpg"><img decoding="async" class="alignnone size-full wp-image-13566" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-scaled.jpg" alt="check av control panel buttons respond" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/check-av-control-panel-buttons-respond-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>For a panel with physical buttons, check whether they appear to operate normally. For a touchscreen, see whether it responds to touch.</p>
<p>If some controls work while others do not, or the panel responds inconsistently, make a note of the affected functions. Damaged buttons or an unresponsive touchscreen may indicate a hardware problem, but power, communication or configuration issues can produce similar symptoms.</p>
<p>If the panel remains unresponsive after these basic checks, troubleshooting can get complicated quickly. This is exactly why we have a service department who can investigate and resolve deeper technical issues safely.</p>
<h2><b>Common Causes of AV Control Panel Problems</b></h2>
<p>If the basic checks do not resolve the problem, the fault may involve the control connection, the school’s network or another component in the installed AV system.</p>
<h3><b>Faulty RS-232 Connection or Control Port</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/faulty-rs-232-connection1.jpg"><img decoding="async" class="alignnone size-full wp-image-13567" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/faulty-rs-232-connection1.jpg" alt="faulty rs-232 connection" width="1024" height="576" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/faulty-rs-232-connection1.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/faulty-rs-232-connection1-300x169.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/faulty-rs-232-connection1-768x432.jpg 768w" sizes="(max-width: 1024px) 100vw, 1024px" /></a></p>
<p>Some AV control panels communicate with a projector or TV through an RS-232 control cable. This connection allows the control system to send commands to the equipment.</p>
<p>If the relevant port fails, the cable becomes disconnected or the connection develops a fault, the panel may no longer be able to control the projector or display.</p>
<p>The panel may still appear to be powered on, making the cause difficult to identify through basic checks alone. An AV technician can inspect and test the control connection to determine where communication is failing.</p>
<h3><b>Network Connection or IP Address Conflict</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-scaled.jpg"><img decoding="async" class="alignnone size-full wp-image-13568" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-scaled.jpg" alt="control panel ip address conflict" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/ip-address-conflict-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>Other AV control systems communicate through the school’s network. Depending on the installation, the panel or another control-system component may also receive power through a compatible network switch using PoE.</p>
<p>If a network-connected control system becomes unresponsive, the school’s IT team can check whether:</p>
<ul>
<li aria-level="1">The network cable or switch port has been disconnected.</li>
<li aria-level="1">Two devices are using the same IP address, creating a conflict.</li>
<li aria-level="1">A recent network configuration change or VLAN update has interrupted communication.</li>
<li aria-level="1">The relevant switch port or network equipment is experiencing a problem.</li>
</ul>
<p>Restarting network equipment may sometimes restore communication, but it is not a universal fix. A restart can also interrupt other connected devices, so the IT team should assess whether it is appropriate before proceeding.</p>
<p>If the network appears to be operating normally but the panel still cannot control the AV equipment, an AV technician may need to investigate the controller, its configuration and its connections.</p>
<h3><b>Power Interruption or Faulty Controller</b></h3>
<p>A power interruption or brownout may affect the control panel, its power supply or other connected AV equipment. If the panel stops working after a power event, note whether other equipment in the room has also been affected. This may help with diagnosis, although it does not confirm that the power event caused the fault.</p>
<p>A wall controller that keeps freezing or an Extron or Crestron controller that is not responding may have a hardware fault. However, the symptoms alone do not establish that the controller is defective. The problem could also involve its power supply, control connections, network connectivity or configuration.</p>
<p>An AV technician can assess the controller and connected equipment to identify the underlying cause. Avoid changing controller programming or system settings unless you have the appropriate technical knowledge and authorisation.</p>
<h2><b>What If the Control Panel Responds but the Projector or Display Does Not?</b></h2>
<p>A control panel can appear to be working while the equipment it controls fails to respond. For example, the panel may accept a command to turn on the projector, but the projector remains off.</p>
<p>Possible causes include a communication problem between the panel and the equipment, a control configuration issue, or a fault with the projector or display itself.</p>
<p>An HDMI auto-switcher issue can also affect which video source appears on the display, even when the control panel responds to commands. In that case, the problem may involve the video signal path rather than the panel.</p>
<p>Note which commands work and which do not. This information can help an AV technician distinguish a control problem from a signal-routing or equipment fault.</p>
<h2><b>When to Get Help With an Unresponsive AV Control Panel</b></h2>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-scaled.jpg"><img decoding="async" class="alignnone size-full wp-image-13569" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-scaled.jpg" alt="get help with unresponsive av controller" width="1280" height="714" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-scaled.jpg 1280w, https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-300x167.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-1024x572.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-768x429.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-1536x857.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-2048x1143.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/10/get-help-with-unresponsive-av-controller-540x300.jpg 540w" sizes="(max-width: 1280px) 100vw, 1280px" /></a></p>
<p>If your control panel remains unresponsive after the basic checks, an AV technician can investigate the cause. This may involve testing control connections, checking the controller configuration or identifying faults in other connected equipment.</p>
<p>Your school’s IT team can investigate network-related issues, including disconnected switch ports, IP address conflicts and recent network changes. An AV technician can assess the control system and work with IT where necessary.</p>
<p>Before arranging repairs, check whether the affected equipment is covered by an existing installation or manufacturer’s warranty. Coverage depends on the equipment, the fault and the applicable terms.</p>
<div class="wpcmsdev-box">
<div class="box-content">
<p>If you need help with a control panel, D.I.B Audio Visual offers complete support—from initial diagnosis to servicing and repair. <a href="https://dibaustralia.com.au/service/log-a-service-request/"><strong>Log a service request</strong></a> to discuss your symptoms and determine the appropriate next steps.</p>
<p><b>Direct Service Phone: </b>03 9459 0000<br />
<b>Email:</b> <a href="mailto:service@dibaustralia.com.au">service@dibaustralia.com.au</a></p>
<p>For more information about D.I.B’s service capabilities, visit the<a href="https://dibaustralia.com.au/service/service/"> D.I.B Audio Visual Service page</a>.</p>
</div>
</div>
<p>&nbsp;</p>
<p>The post <a href="https://dibaustralia.com.au/av-control-panel-not-responding-troubleshooting-tips-for-schools/">AV Control Panel Not Responding? Troubleshooting Tips for Schools</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Panasonic’s New Direct-View LED Wall: A Practical Approach to Video Wall Upgrades</title>
		<link>https://dibaustralia.com.au/panasonic-new-direct-view-led/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=panasonic-new-direct-view-led</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Thu, 01 Oct 2026 00:29:03 +0000</pubDate>
				<category><![CDATA[New Gymnasium Products]]></category>
		<category><![CDATA[New Theatre/Hall Products]]></category>
		<category><![CDATA[Products]]></category>
		<category><![CDATA[New Digital Signage Products]]></category>
		<category><![CDATA[Video Wall installation]]></category>
		<category><![CDATA[led video wall]]></category>
		<category><![CDATA[AV display solutions]]></category>
		<category><![CDATA[professional AV solutions]]></category>
		<category><![CDATA[education AV]]></category>
		<category><![CDATA[commercial LED display]]></category>
		<category><![CDATA[direct-view LED]]></category>
		<category><![CDATA[direct-view LED wall]]></category>
		<category><![CDATA[DvLED]]></category>
		<category><![CDATA[LED video wall display]]></category>
		<category><![CDATA[Panasonic direct-view LED]]></category>
		<category><![CDATA[Panasonic LED wall]]></category>
		<category><![CDATA[video wall upgrade]]></category>
		<category><![CDATA[video wall replacement]]></category>
		<category><![CDATA[seamless video wall]]></category>
		<category><![CDATA[LED display wall]]></category>
		<category><![CDATA[professional LED display]]></category>
		<category><![CDATA[school video wall]]></category>
		<category><![CDATA[office video wall]]></category>
		<category><![CDATA[video wall servicing]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13538</guid>

					<description><![CDATA[<p>For schools, offices and other professional environments, a video wall can provide a large, highly visible canvas for presentations, collaboration, information displays and digital content. But as an existing video wall ages, replacing it can raise practical questions: Can the current mounting system be reused? How much infrastructure needs to change? Will servicing require significant [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/panasonic-new-direct-view-led/">Panasonic’s New Direct-View LED Wall: A Practical Approach to Video Wall Upgrades</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>For schools, offices and other professional environments, a video wall can provide a large, highly visible canvas for presentations, collaboration, information displays and digital content. But as an existing video wall ages, replacing it can raise practical questions: Can the current mounting system be reused? How much infrastructure needs to change? Will servicing require significant disruption? And does moving to LED mean adding another layer of processing equipment?</p>
<p>Panasonic’s new Direct-View LED (DvLED) wall takes a practical approach to these considerations.</p>
<p>Showcased at Integrate in Sydney, the new Panasonic DvLED solution uses 55-inch, 16:9 cabinets with a 1.26 mm pixel pitch and 800 cd/m² brightness. It has also been designed around VESA-compatible mounting and front-access servicing. Panasonic integrates the display control system into the product, allowing content to be connected through HDMI without requiring a separate external video-wall controller.</p>
<p><iframe title="Integrate 2026: Panasonic Direct View LED Video Wall" width="500" height="281" src="https://www.youtube.com/embed/QKUu-3pon44?feature=oembed&#038;enablejsapi=1&#038;origin=https%3A%2F%2Fdibaustralia.com.au" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe></p>
<p>For schools and offices with an ageing LCD video wall, these practical details may be just as relevant as the display specifications.</p>
<h3><b>What Is Direct-View LED?</b></h3>
<p>Direct-view LED is a display technology in which the individual LED modules themselves produce the image. Unlike a conventional LCD video wall, there is no LCD panel with a bezel surrounding each screen.</p>
<p>This allows multiple LED cabinets to form a continuous display without the visible lines between individual LCD panels that are characteristic of tiled LCD video walls.</p>
<p>For applications where content needs to remain clearly visible across a large surface, this can be useful. A school may use a large display for assemblies, events or presentations, while an office may use a video wall for presentations, collaboration, corporate communications or digital signage.</p>
<p>The suitability of DvLED still depends on the room, viewing distance, content and required screen size. However, the absence of conventional LCD bezels can be useful where content needs to extend across the display area without the interruption created by individual screen frames.</p>
<h3><b>A 55-Inch Format Designed for Video Wall Applications</b></h3>
<p>One of the more distinctive aspects of Panasonic’s new DvLED solution is its 55-inch cabinet format.</p>
<p>Each cabinet is designed around a 55-inch 16:9 format, with Panasonic specifying a 1.26 mm pixel pitch and 800 cd/m² brightness. The pixel pitch describes the distance between the centres of adjacent LED pixels, with a smaller pitch allowing pixels to be positioned more closely together.</p>
<p>Brightness is another consideration when selecting a display. Panasonic rates this DvLED solution at 800 cd/m², which is relevant when considering installations in environments with significant ambient light.</p>
<p>These specifications should be considered alongside the room itself. A boardroom, school auditorium, foyer or multipurpose room can have very different lighting conditions and viewing distances.</p>
<p>For organisations planning a new display, the appropriate DvLED configuration should therefore be determined by the intended application, viewing distance, ambient lighting and content requirements.</p>
<h3><b>Designed to Make Video Wall Upgrades More Practical</b></h3>
<p>Replacing an ageing video wall is not necessarily as simple as removing the old displays and installing new ones.</p>
<p>Mounting infrastructure, wall construction, cabling, signal distribution and control equipment can all form part of an existing installation. Changing one component can sometimes create requirements for changes elsewhere in the system.</p>
<p>Panasonic has addressed one of these considerations with VESA-compatible mounting.</p>
<p>The 55-inch DvLED cabinet uses a VESA 400 × 400 mm mounting arrangement, allowing existing LCD video-wall mounts or brackets to potentially be reused where the existing infrastructure is suitable. This does not mean every existing bracket will automatically be compatible. The mounting system, wall structure, dimensions, load requirements and existing installation should still be assessed before an upgrade proceeds.</p>
<figure id="attachment_13540" aria-describedby="caption-attachment-13540" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0051.jpg"><img decoding="async" class="size-large wp-image-13540" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0051-1024x574.jpg" alt="View of Panasonic's Direct-view LED VESA mounting back" width="1024" height="574" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0051-1024x574.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0051-300x168.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0051-768x430.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0051.jpg 1035w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13540" class="wp-caption-text">A look at the back of Panasonic’s DvLED panels, with the VESA 400&#215;400 mounting arrangement.</figcaption></figure>
<p>For schools and offices, this can provide greater flexibility when planning a replacement. An AV integrator can assess the existing installation to determine what infrastructure can remain and what needs to change.</p>
<h3><b>Integrated Control for a More Straightforward Setup</b></h3>
<p>Another notable feature is Panasonic’s integrated control architecture.</p>
<p>Traditional video wall installations can involve additional processors or controllers to distribute and manage content across multiple displays. Panasonic’s DvLED wall incorporates the control system into the display, supporting HDMI connectivity and HDMI daisy-chain operation.</p>
<p>This can simplify the overall system design by removing the need for a separate external video-wall controller in supported configurations.</p>
<p>For an IT Manager, fewer external control components can also mean fewer pieces of equipment to account for when documenting and maintaining an AV system. For a school or business, it can provide a straightforward installation where advanced external video processing is not required.</p>
<p>The appropriate control approach will still depend on the requirements of the particular installation. Panasonic’s integrated design provides an option for applications where a separate video-wall processor is unnecessary.</p>
<h3><b>Front-Access Servicing Can Help With Maintenance</b></h3>
<p>Maintenance is another consideration that can become increasingly important as an AV installation ages.</p>

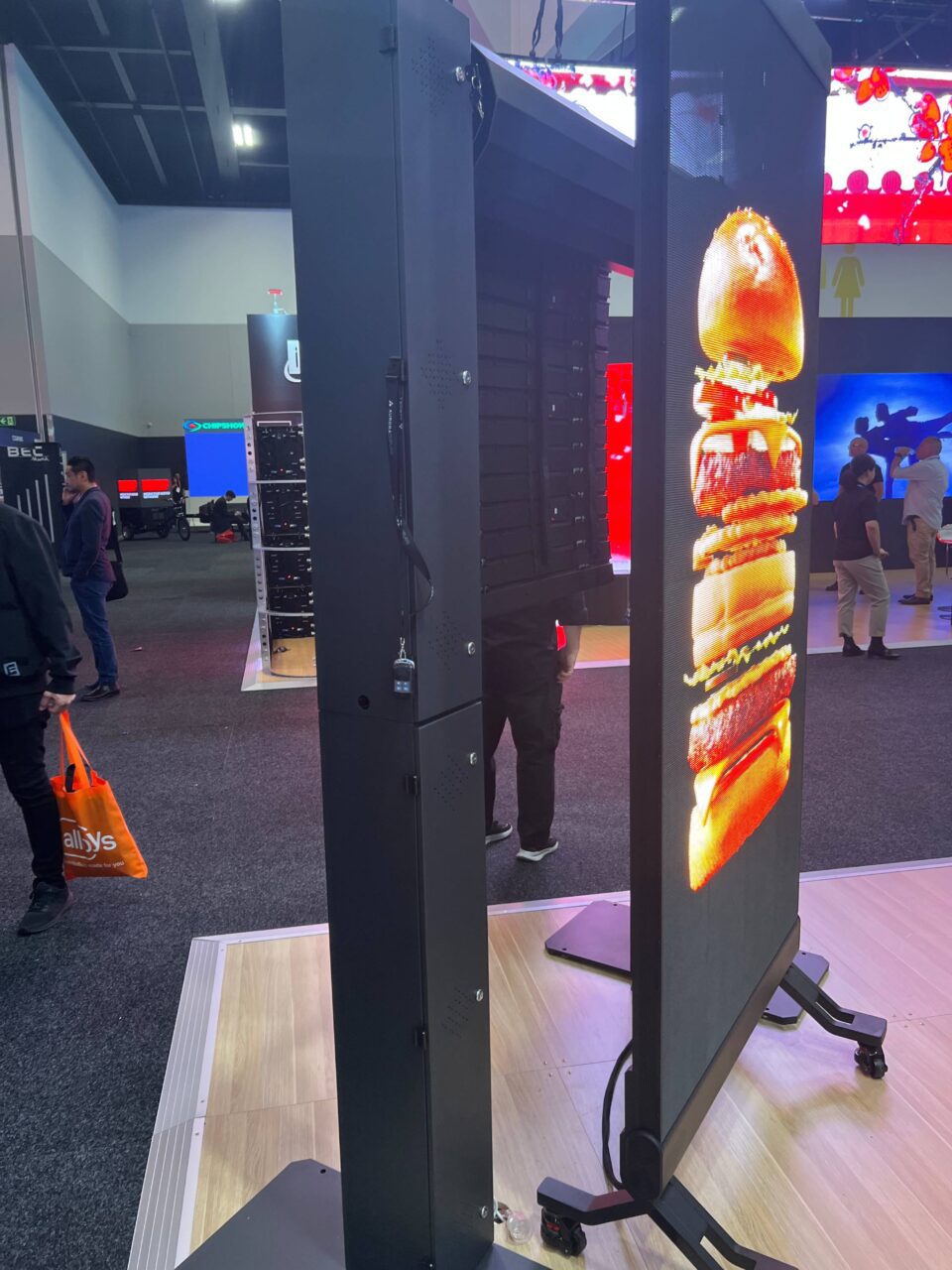

<p>Panasonic’s DvLED wall uses front-access servicing, allowing LED modules and key components to be accessed from the front of the display. Panasonic identifies front access for module, power supply and board servicing as part of the design.</p>
<p>This can be particularly useful for displays installed directly against a wall, where accessing the rear of the display may be difficult or disruptive.</p>
<p>For a school, this may be relevant in a multipurpose space that is regularly used for assemblies, performances or community activities. In an office, it can be useful where meeting rooms, reception areas or collaboration spaces need to remain operational.</p>
<p>Maintenance requirements will always depend on the installation and the nature of the fault, but front access provides technicians with a practical way to reach serviceable components.</p>
<h3><b>Designed for Professional Applications</b></h3>
<p>Panasonic specifies the DvLED wall for 24/7 operation, with its LED modules rated for up to 100,000 hours to half brightness. The system also uses Flipchip COB LED technology, which Panasonic identifies as providing greater robustness for professional display applications.</p>
<p>For schools and businesses, these specifications are relevant because professional AV displays may need to operate for extended periods rather than being switched on only for occasional presentations.</p>
<p>The 100,000-hour figure should not be interpreted as a guaranteed lifespan for the complete display. It refers to the LED module&#8217;s rated brightness half-life under the specified conditions.</p>
<p>As with any professional AV equipment, actual operating life and performance can be influenced by installation conditions, operating settings, usage and maintenance.</p>
<h3><b>Where Could a Direct-View LED Wall Be Used?</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0011.jpg"><img decoding="async" class="alignnone size-large wp-image-13541" src="https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0011-1024x574.jpg" alt="Panasonic Direct View LED on commercial setting" width="1024" height="574" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0011-1024x574.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0011-300x168.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0011-768x430.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/10/LV0011.jpg 1035w" sizes="(max-width: 1024px) 100vw, 1024px" /></a></p>
<p>DvLED can suit a range of professional environments, but the appropriate application depends on the requirements of the space.</p>
<h4><b>Schools</b></h4>
<p>In education environments, a large seamless display could support assemblies, presentations, performances, events and shared learning spaces.</p>

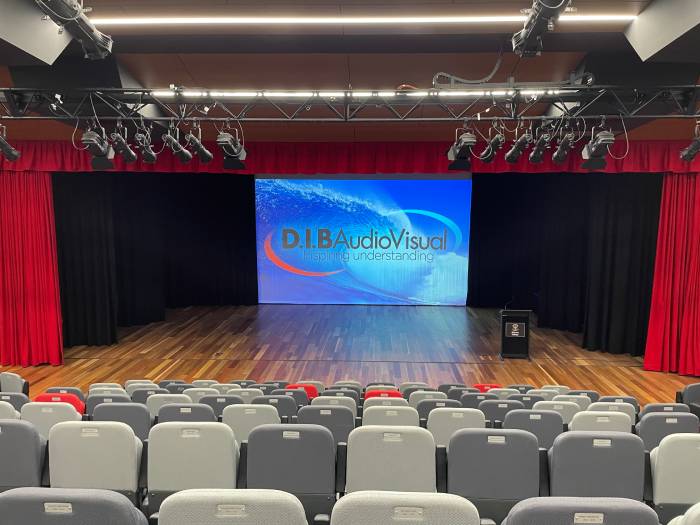

<p>A video wall in a school hall, performing arts venue or multipurpose room may need to remain visible from different parts of the room while supporting a mixture of presentations, video and graphics.</p>
<p>The seamless format can also be useful where content needs to extend across the entire display area without the interruption of conventional LCD bezels.</p>
<h4><b>Offices</b></h4>

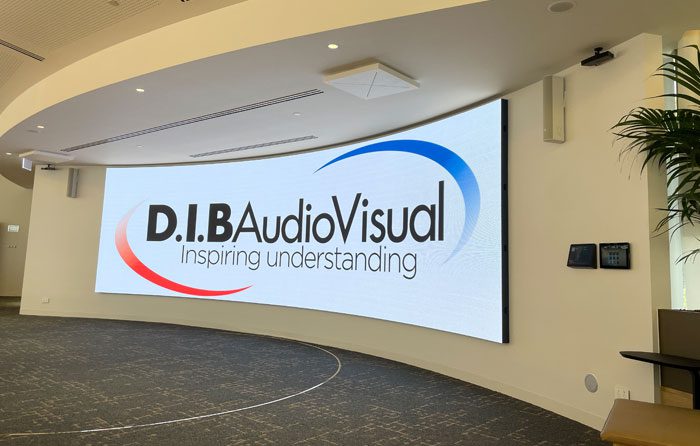

<p>Corporate environments can use large-format displays for presentations, collaboration, corporate communications and reception or public-facing information.</p>
<p>In meeting and collaboration spaces, HDMI connectivity provides a familiar connection method, while the integrated control architecture can simplify the overall system where a separate video-wall controller is not required.</p>
<h4><b>Foyers and Shared Spaces</b></h4>
<p>A large display can also be used to communicate information in areas such as school reception spaces, corporate foyers and other shared environments.</p>
<p>Here, brightness and image consistency can be important considerations, particularly where the display is installed in a space with significant natural or artificial ambient light.</p>
<h3><b>Is DvLED the Right Choice for Every Video Wall?</b></h3>
<p>Not necessarily.</p>
<p>The decision between DvLED, LCD video wall displays, large-format professional displays and projection should be based on the environment and the intended use.</p>
<p>Factors such as viewing distance, room size, ambient lighting, content type, screen dimensions, mounting requirements, budget, maintenance access and existing AV infrastructure should all be considered.</p>
<p>For an organisation replacing an existing video wall, the condition of the current mounting system and signal infrastructure should also be assessed before deciding what can be retained.</p>
<p>This is where professional AV planning becomes important. A product specification can indicate what a display is capable of, but the installation determines how effectively that technology will work within the space.</p>
<h3><b>A Practical Approach to Video Wall Upgrades</b></h3>
<p>Panasonic’s new DvLED wall brings together a 55-inch 16:9 cabinet format, 1.26 mm pixel pitch, 800 cd/m² brightness, VESA-compatible mounting, front-access servicing and integrated control.</p>
<p>For organisations considering an ageing video wall, these features provide several practical considerations when assessing whether DvLED is appropriate for the space. Existing infrastructure may be reusable following a technical assessment, while the integrated control and front-access design can simplify aspects of installation and ongoing service.</p>
<p>As with any AV upgrade, the right solution depends on the room, existing infrastructure and intended use.</p>
<p>If your school or organisation is considering replacing an ageing video wall, D.I.B. Audio Visual can assess the existing installation and help determine whether a direct-view LED solution is appropriate for the space. Our team can consider mounting, connectivity, control and ongoing service requirements alongside the display itself.</p>
<p><a href="https://dibaustralia.com.au/contact-us/"><b>Talk to D.I.B. Audio Visual</b></a><b> on 03 9457 4800 or email </b><a href="mailto:info@dibaustralia.com.au"><b>info@dibaustralia.com.au</b></a><b> to discuss your video wall requirements.</b></p>
<p>The post <a href="https://dibaustralia.com.au/panasonic-new-direct-view-led/">Panasonic’s New Direct-View LED Wall: A Practical Approach to Video Wall Upgrades</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Why Do Classrooms Need More Than Just a Display?</title>
		<link>https://dibaustralia.com.au/why-do-classrooms-need-more-than-just-a-display/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=why-do-classrooms-need-more-than-just-a-display</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Thu, 24 Sep 2026 05:53:10 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[Classroom Installations]]></category>
		<category><![CDATA[Installations]]></category>
		<category><![CDATA[classroom technology]]></category>
		<category><![CDATA[classroom av]]></category>
		<category><![CDATA[classroom display systems]]></category>
		<category><![CDATA[classroom AV systems]]></category>
		<category><![CDATA[classroom audio systems]]></category>
		<category><![CDATA[classroom audiovisual systems]]></category>
		<category><![CDATA[school AV systems]]></category>
		<category><![CDATA[classroom audio visual technology]]></category>
		<category><![CDATA[school audiovisual solutions]]></category>
		<category><![CDATA[classroom presentation systems]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13531</guid>

					<description><![CDATA[<p>A classroom display can make lesson content easier to see, but it is only one part of an effective audiovisual environment. Modern classrooms may need to support presentations, video, collaboration, remote participants and a range of teaching devices. Students also need to hear content clearly, while teachers need technology that is straightforward to operate during [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/why-do-classrooms-need-more-than-just-a-display/">Why Do Classrooms Need More Than Just a Display?</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>A classroom display can make lesson content easier to see, but it is only one part of an effective audiovisual environment.</p>
<p>Modern classrooms may need to support presentations, video, collaboration, remote participants and a range of teaching devices. Students also need to hear content clearly, while teachers need technology that is straightforward to operate during a lesson.</p>
<p>This means classroom AV design involves more than choosing the right screen. <b>Audio, connectivity, control, room layout, accessibility and reliability all have a role to play.</b></p>
<p>For schools planning a new learning space or upgrading an existing classroom, considering these elements together can help ensure the technology is practical, appropriate and aligned with how the room will be used.</p>
<h3><b>The Display Is Only One Part of the AV System</b></h3>
<figure id="attachment_13091" aria-describedby="caption-attachment-13091" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-scaled.jpg"><img decoding="async" class="size-large wp-image-13091" src="https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-1024x768.jpg" alt="Biyala Primary School AV setup by D.I.B Audio Visual." width="1024" height="768" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-1024x768.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-300x225.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-768x576.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-1536x1152.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-2048x1536.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/04/IMG_82231-scaled.jpg 1280w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13091" class="wp-caption-text"><a href="https://dibaustralia.com.au/portfolio/av-solutions-at-biyala-primary-school-from-concept-to-classroom/">Biyala Primary School’s learning spaces</a>, equipped with future-ready AV. At the centre of each room is an 86-inch display, complimented by ceiling speakers.</figcaption></figure>
<p>The display is usually the most visible component of classroom AV. Depending on the space, this might be an interactive display, large-format screen, projector and projection screen, or another visual presentation system.</p>
<p>It can be used to present lesson material, demonstrate software, display documents, show videos and share information with students.</p>
<p>However, the visual component is only one part of the classroom experience.</p>
<p>Consider a teacher playing an educational video. The display may provide a clear image, but students also need to hear the dialogue and accompanying audio. If the teacher is presenting from a laptop, there needs to be a convenient way to connect that device. If the lesson involves a remote presenter, cameras and microphones may also be required.</p>
<p>A classroom AV system can therefore include:</p>
<ul>
<li aria-level="1">Displays or projection systems</li>
<li aria-level="1">Classroom speakers</li>
<li aria-level="1">Microphones where appropriate</li>
<li aria-level="1">Wired and wireless presentation connectivity</li>
<li aria-level="1">Teacher and student source devices</li>
<li aria-level="1">Video conferencing equipment</li>
<li aria-level="1">AV control interfaces</li>
<li aria-level="1">Document or visual cameras</li>
<li aria-level="1">Accessibility technologies</li>
<li aria-level="1">Network-connected AV equipment</li>
</ul>
<p>The right combination depends on the room, its intended use and the school&#8217;s requirements.</p>
<h3><b>Classroom Audio Is Just as Important as the Visuals</b></h3>
<p>A large, high-resolution display cannot compensate for unclear or uneven audio.</p>
<p>Students may need to hear teachers, videos, presentations and remote participants from different positions throughout the classroom. If sound is concentrated in one area or becomes difficult to understand at the back of the room, simply increasing the volume may not address the underlying issue.</p>
<p>Room acoustics, speaker placement, background noise and classroom size can all influence audio performance.</p>
<p>A well-considered classroom audio system aims to distribute sound appropriately throughout the room. Speaker selection and placement should take the physical characteristics of the space into account.</p>
<p>This can sometimes mean using dedicated speakers rather than relying on the speakers built into a projector or display.</p>
<figure id="attachment_13534" aria-describedby="caption-attachment-13534" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-scaled.jpg"><img decoding="async" class="size-large wp-image-13534" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-1024x461.jpg" alt="Projector setup on Heatherwood School classrooms. Installed by D.I.B Audio Visual." width="1024" height="461" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-1024x461.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-300x135.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-768x346.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-1536x692.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-2048x922.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_1407231-Edited1-scaled.jpg 1280w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13534" class="wp-caption-text">External Kramer speakers installed to provide stronger sound coverage than the standard built-in projector speakers in Heatherwood School’s classrooms.</figcaption></figure>
<p>For example,<a href="https://dibaustralia.com.au/portfolio/heatherwood-school/"> <b>Heatherwood School&#8217;s classroom AV installation</b></a> includes external Kramer speakers to provide stronger sound coverage than the standard built-in projector speakers. The installation also incorporated Epson ultra-short-throw interactive projectors and Vivi wireless presentation, demonstrating how visual, audio and presentation technologies can work together within a classroom.</p>
<p>Microphones may also be appropriate in certain environments, depending on the room and how it is used.</p>
<p>The objective is not to add audio equipment simply because it is available. It is to provide a system suited to the space and its teaching requirements.</p>
<h3><b>Connectivity Should Make Teaching Easier</b></h3>
<p>Teachers increasingly work across multiple devices and content sources.</p>
<p>A lesson might involve a school laptop, student device, document camera, interactive application, video or wireless presentation platform. A classroom may therefore need more than a single connection to a display.</p>
<p>Technologies such as HDMI, USB-C and wireless presentation can provide different ways of bringing content into the AV system. The appropriate approach will depend on the school&#8217;s existing devices, network environment and teaching requirements.</p>
<figure id="attachment_13487" aria-describedby="caption-attachment-13487" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-scaled.jpg"><img decoding="async" class="size-large wp-image-13487" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-1024x461.jpg" alt="HDMI wall plates installed by D.I.B Audio Visual at Sunbury Downs Secondary College Relocatable Classrooms" width="1024" height="461" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-1024x461.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-300x135.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-768x346.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-1536x692.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-2048x922.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260210_105137-scaled.jpg 1280w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13487" class="wp-caption-text">Neatly installed HDMI wall plates provide convenient connectivity while maintaining the clean appearance of <a href="https://dibaustralia.com.au/portfolio/sunbury-downs-secondary-college-relocatable-classrooms/">Sunbury Down Secondary College’s relocatable classrooms.</a></figcaption></figure>
<p>Ease of use is equally important.</p>
<p>If teachers need to locate adapters, change several settings or troubleshoot connections before they can begin a lesson, the technology can become an unnecessary interruption.</p>
<p>Good AV design considers both <b>what can connect to the system and how easily staff can use those connections</b>.</p>
<h3><b>Simple Control Can Reduce Complexity</b></h3>
<p>A classroom AV system may contain several interconnected devices, including displays, projectors, amplifiers, speakers, cameras and presentation sources.</p>
<p>Without appropriate control, teachers may need to operate several pieces of equipment independently.</p>

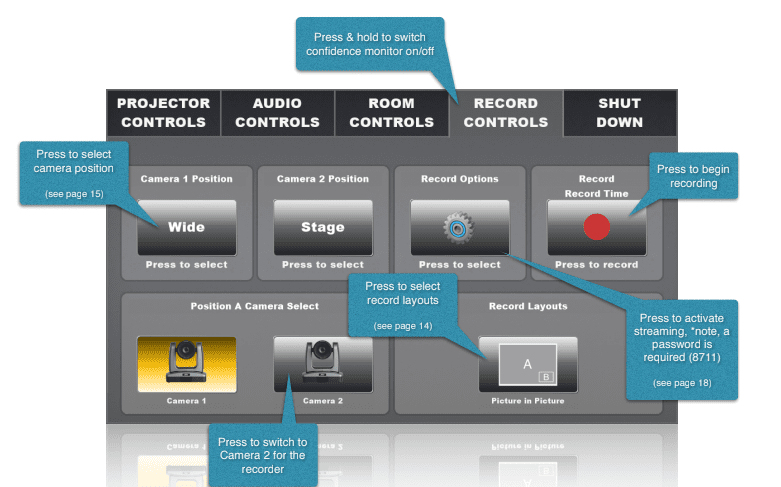

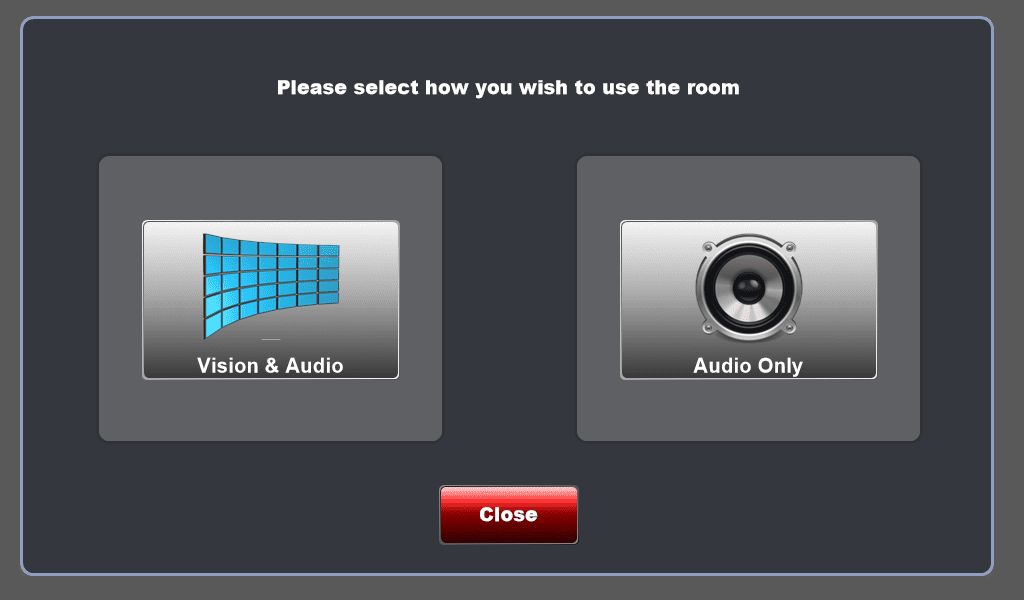

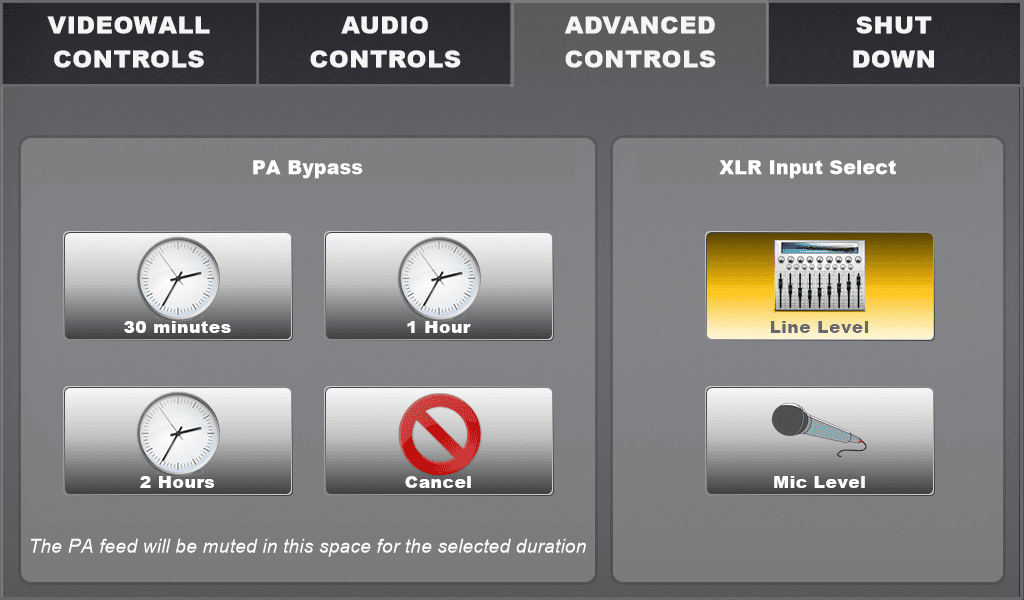

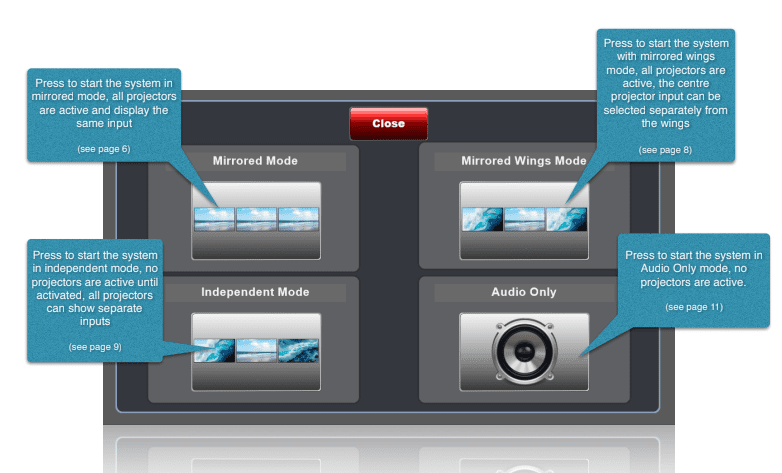

<p>A control interface can bring commonly used functions together. Depending on the system, this may allow a teacher to:</p>
<ul>
<li aria-level="1">Turn the AV system on or off</li>
<li aria-level="1">Select a presentation source</li>
<li aria-level="1">Adjust volume</li>
<li aria-level="1">Switch between wired and wireless content</li>
<li aria-level="1">Control a projector or display</li>
<li aria-level="1">Operate other room-specific functions</li>
</ul>
<p>The level of control should match the complexity of the classroom.</p>
<p>A straightforward teaching space may only require a simple interface, while a flexible learning environment or specialist room may benefit from more comprehensive control.</p>
<figure id="attachment_13511" aria-describedby="caption-attachment-13511" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-scaled.jpg"><img decoding="async" class="size-large wp-image-13511" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-1024x576.jpg" alt="Melton Specialist School's JED control panel and HDMI installed by D.I.B Audio Visual" width="1024" height="576" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-1024x576.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-300x169.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-768x432.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-1536x864.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-2048x1152.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20260202_1420001-scaled.jpg 1280w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13511" class="wp-caption-text">A JED wall control panel provides simple AV control for <a href="https://dibaustralia.com.au/portfolio/melton-specialist-school-food-technology-room/">Djirri Djirri School’s Food Technology Room</a>.</figcaption></figure>
<p>The key consideration is usability. Teachers should be able to operate the system without spending unnecessary time navigating technology before or during a lesson.</p>
<h3><b>Room Design Influences AV Performance</b></h3>
<p>AV equipment does not operate independently of the room around it.</p>
<p>Classroom dimensions, ceiling height, seating arrangements, windows, lighting and acoustics can all influence the design of an AV system.</p>
<p>Display selection and positioning should take viewing distances and seating arrangements into account, while speaker placement needs to consider room acoustics and where students are positioned.</p>
<p>Even the location of connection points and control interfaces can affect how practical a system is to use.</p>
<p>This is why AV planning is particularly useful during the design or refurbishment of a learning space. Considering technology alongside the physical environment can help reduce compromises that may otherwise become apparent after installation.</p>
<h3><b>Accessibility Should Be Considered From the Beginning</b></h3>
<p>Classrooms need to accommodate students with different needs, making accessibility an important consideration in AV planning.</p>
<p>Audio, display positioning, captions, microphone systems and hearing assistance technologies can all play a role depending on the requirements of the school and its students.</p>
<p>Clear and appropriately distributed audio may help students who have difficulty hearing. Captions can provide another way to access video content, while suitable display positioning and sizing can support visibility.</p>
<p>There is no single accessibility configuration that applies to every classroom.</p>
<p>Instead, schools can consider accessibility requirements alongside the rest of the AV design, rather than treating them as an additional consideration after the system has already been specified.</p>
<h3><b>Classrooms Can Extend Beyond the Physical Room</b></h3>
<p>Classroom AV can also support learning beyond the lesson itself.</p>

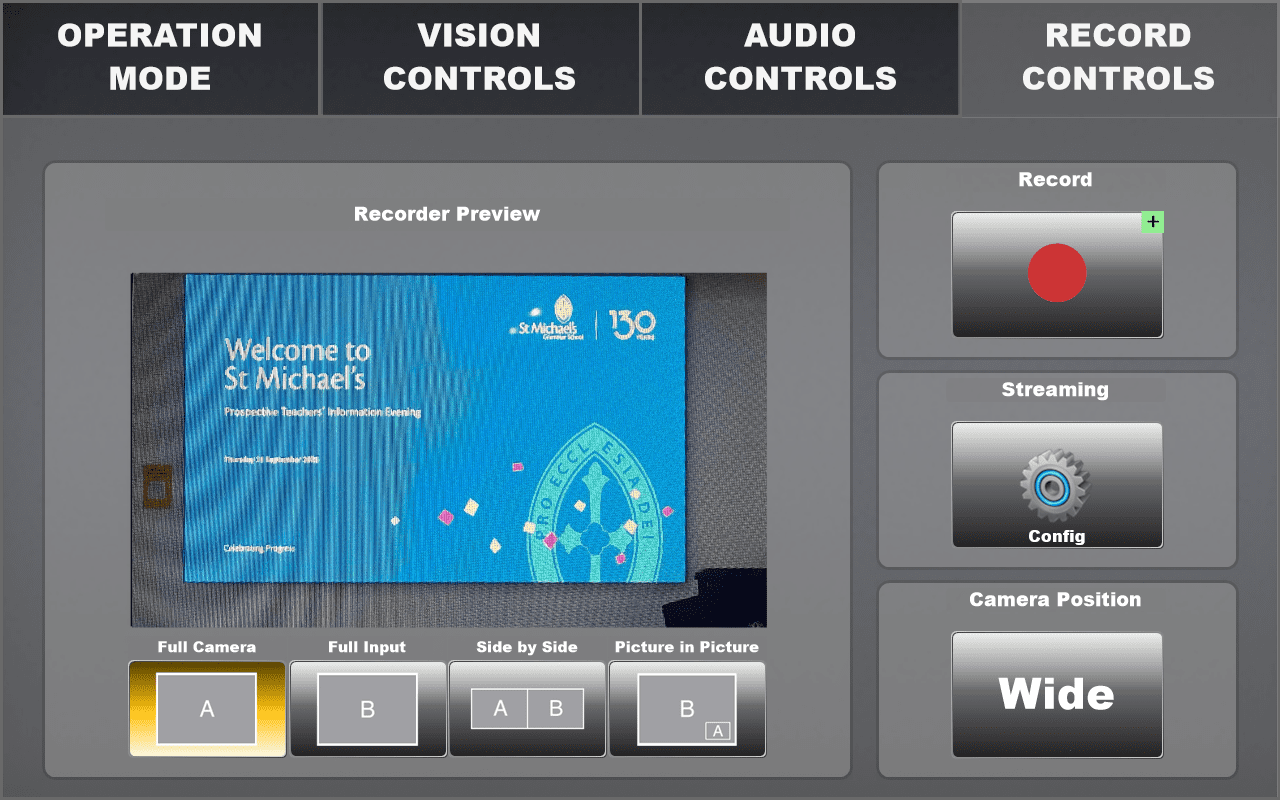

<p>Video conferencing and classroom recording technologies can allow lessons to involve remote participants or provide students with access to classroom content after the session has finished.</p>
<p>For these applications, the AV system may need to incorporate cameras, microphones, audio processing and recording or conferencing technology alongside the display.</p>
<p><a href="https://dibaustralia.com.au/discoverylab-pro-and-lite-flexible-classroom-recording-solutions-for-modern-schools/"><b>DiscoveryLab Pro and DiscoveryLab Lite</b></a> are examples of classroom capture solutions designed around these requirements. Depending on the configuration, DiscoveryLab can support lesson recording, hybrid and remote learning, cross-campus teaching, teacher training and access to classroom content for revision.</p>
<p>This illustrates how classroom AV can extend beyond presenting information on a screen to capturing and sharing what happens within the learning space.</p>
<h3><b>Designing an AV System Around the Classroom</b></h3>
<p>More technology does not necessarily mean a better classroom.</p>
<p>The most appropriate AV system is one that reflects the room&#8217;s purpose, the people using it and the activities it needs to support.</p>
<p>A general teaching classroom may require a display, speakers and straightforward presentation connectivity. A flexible learning space could have additional presentation sources and wireless collaboration capabilities. A specialist teaching environment may require different equipment altogether.</p>
<p>For schools, it can therefore be useful to start with the room&#8217;s requirements rather than a particular product.</p>
<p>Questions such as <b>What will the room be used for? Who will use it? What devices need to connect? How will content be presented? How will the system be operated and supported?</b> can help establish technical requirements before specific equipment is selected.</p>
<p>This approach can also help avoid adding features that do not provide meaningful value to the space.</p>
<h3><b>Reliability Matters in Everyday Teaching</b></h3>
<p>Classroom AV may be used repeatedly throughout the school day, making reliability an important part of the overall design.</p>
<p>A system that regularly requires troubleshooting can interrupt lessons and place additional demands on teachers and IT staff. Reliability can be influenced by equipment selection, system design, installation, configuration and ongoing maintenance.</p>
<p>Support should also be considered when planning AV across multiple classrooms.</p>
<p>For IT Managers and Business Managers, standardising certain elements where appropriate can make systems more familiar to staff and potentially simplify support. At the same time, individual rooms may still require different configurations based on their specific teaching requirements.</p>
<p>Considering the system&#8217;s ongoing operation—not just its initial installation—can help schools plan for longer-term use.</p>
<h3><b>What Should Schools Consider When Planning Classroom AV?</b></h3>
<p>Before selecting a display or specifying individual AV components, schools can consider several practical questions.</p>
<p><b>What is the room used for?</b><b><br />
</b>A standard classroom, specialist room, flexible learning area and lecture environment may have different AV requirements.</p>
<p><b>How many students need to see and hear the content?</b><b><br />
</b>Room dimensions, seating arrangements, viewing distances and acoustics can influence display and audio decisions.</p>
<p><b>What devices will teachers and students use?</b><b><br />
</b>Existing laptops, tablets and other school devices should be considered when determining connectivity requirements.</p>
<p><b>Will the room support remote participants or recorded lessons?</b><b><br />
</b>If video conferencing or classroom capture is required, cameras, microphones, speakers, connectivity and recording technology should be planned as part of the same system.</p>
<p><b>How will teachers control the technology?</b><b><br />
</b>The control interface should be appropriate to the room and simple enough for everyday use.</p>
<p><b>Are accessibility requirements being considered?</b><b><br />
</b>Audio, captions, display positioning and other technologies may need to be incorporated depending on the needs of the school community.</p>
<p><b>How will the system be maintained and supported?</b><b><br />
</b>Schools should consider troubleshooting, equipment access, maintenance and future changes alongside the initial installation.</p>
<p>These questions help move the conversation from simply choosing a display to planning an AV environment around the classroom&#8217;s actual requirements.</p>
<h3><b>A Classroom Display Is Part of a Bigger Picture</b></h3>
<p>A classroom display remains an important part of modern AV, but it is only one element of the overall system.</p>
<p>Effective classroom AV brings together visual presentation, audio, connectivity and control while taking the room&#8217;s physical characteristics, accessibility requirements and intended use into account.</p>
<p>For schools, this whole-room approach can help ensure technology is practical for teachers, accessible to students and manageable for IT teams.</p>
<p>When planning a new classroom or upgrading an existing space, the most useful question may not be <b>&#8220;Which display should we install?&#8221;</b></p>
<p>It may be:</p>
<p><b>&#8220;What does this classroom need its AV system to do?&#8221;</b></p>
<p>Starting with that question provides a clearer foundation for selecting the right combination of technology.</p>
<p><a href="https://dibaustralia.com.au/solutions/classroom-av-installation/">If your school is planning a classroom AV upgrade</a> or developing technology requirements for a new learning space, D.I.B Audio Visual can help assess the room, its intended use and technical requirements to develop an appropriate AV solution.</p>
<p><a href="https://dibaustralia.com.au/contact-us/"><b>Contact D.I.B Audio Visual</b><b><br />
</b></a><a href="mailto:info@dibaustralia.com.au">info@dibaustralia.com.au</a> | 03 9457 4800</p>
<p>The post <a href="https://dibaustralia.com.au/why-do-classrooms-need-more-than-just-a-display/">Why Do Classrooms Need More Than Just a Display?</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Sennheiser TeamConnect Ceiling M Plus: Smarter Audio for Flexible Spaces</title>
		<link>https://dibaustralia.com.au/sennheiser-teamconnect-ceiling-m-plus-smarter-audio-for-flexible-spaces/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=sennheiser-teamconnect-ceiling-m-plus-smarter-audio-for-flexible-spaces</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Wed, 23 Sep 2026 05:35:48 +0000</pubDate>
				<category><![CDATA[New Meeting Room Products]]></category>
		<category><![CDATA[Products]]></category>
		<category><![CDATA[New Boardroom Products]]></category>
		<category><![CDATA[Sennheiser ceiling microphone]]></category>
		<category><![CDATA[meeting room audio]]></category>
		<category><![CDATA[meeting room technology]]></category>
		<category><![CDATA[school AV systems]]></category>
		<category><![CDATA[hybrid learning]]></category>
		<category><![CDATA[Sennheiser TeamConnect Ceiling M Plus]]></category>
		<category><![CDATA[ceiling microphone]]></category>
		<category><![CDATA[ceiling microphones for schools]]></category>
		<category><![CDATA[classroom audio]]></category>
		<category><![CDATA[AV conferencing]]></category>
		<category><![CDATA[beamforming microphone]]></category>
		<category><![CDATA[classroom microphones]]></category>
		<category><![CDATA[voice lift]]></category>
		<category><![CDATA[Dante audio]]></category>
		<category><![CDATA[Q-SYS]]></category>
		<category><![CDATA[DeviceHub]]></category>
		<category><![CDATA[Sennheiser Australia]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13527</guid>

					<description><![CDATA[<p>As classrooms, meeting rooms and collaboration spaces become more adaptable, audio systems need to accommodate more than a fixed microphone position. Teachers move around classrooms, meeting participants contribute from different locations, and hybrid sessions bring people together both in the room and online. The Sennheiser TeamConnect Ceiling M Plus is designed for these types of [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/sennheiser-teamconnect-ceiling-m-plus-smarter-audio-for-flexible-spaces/">Sennheiser TeamConnect Ceiling M Plus: Smarter Audio for Flexible Spaces</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>As classrooms, meeting rooms and collaboration spaces become more adaptable, audio systems need to accommodate more than a fixed microphone position. Teachers move around classrooms, meeting participants contribute from different locations, and hybrid sessions bring people together both in the room and online.</p>
<p>The <a href="https://www.sennheiser.com/en-us/catalog/products/meeting-and-conference-systems/teamconnect-ceiling-m-plus-5378e/teamconnect-ceiling-m-plus-f-w-700507?srsltid=AU7gw4Vx3nmvTGdpjswHW9AcNAmoepNIdbdOfHnGA-ukL5_9lgHvP6dV"><b>Sennheiser TeamConnect Ceiling M Plus</b></a> is designed for these types of environments. The latest addition to Sennheiser’s TeamConnect Ceiling range combines ceiling-mounted microphone technology with automatic dynamic beamforming, flexible connectivity, AV platform integration and centralised device management.</p>
<p>For schools, businesses and organisations planning new AV systems, it provides an alternative to conventional tabletop or handheld microphones in spaces where people need freedom to move and interact.</p>
<p><iframe title="Integrate 2026: Sennheiser TeamConnect Ceiling M Plus" width="500" height="281" src="https://www.youtube.com/embed/6tfg2hQSOVA?feature=oembed&#038;enablejsapi=1&#038;origin=https%3A%2F%2Fdibaustralia.com.au" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe></p>
<h3><b>Why Ceiling Microphones for Flexible Spaces?</b></h3>
<p>Traditional microphones can work well when speakers remain in predictable positions. A tabletop microphone, for example, can be effective in a boardroom where participants sit around a table throughout a meeting.</p>
<p>However, many contemporary spaces have less defined layouts.</p>
<p>A classroom might involve a teacher moving between different areas while students participate in group activities. A professional learning room may be rearranged for presentations, workshops or discussions. A meeting room may need to accommodate both in-person and remote participants.</p>
<p>A ceiling microphone moves the capture point away from the furniture and into the room itself. Instead of requiring each speaker to remain close to a microphone, the system is designed to capture voices from across the space.</p>
<p>The TCC M Plus is designed for voice pickup up to 4.3 metres, with coverage suited to spaces of up to 60 square metres under Sennheiser’s stated conditions. It uses 15 precision-engineered microphone capsules to capture audio across the room.</p>
<p>This approach can reduce equipment on tables and help keep the microphone system unobtrusive, while providing greater freedom when designing or rearranging a space.</p>
<h3><b>Automatic Beamforming and Speech Capture</b></h3>
<p>One of the TCC M Plus’s key technologies is <b>automatic dynamic beamforming</b>.</p>
<p>Beamforming uses multiple microphone capsules to identify where sound is coming from and focus audio capture towards the active speaker. Dynamic beamforming allows that pickup direction to change as different people contribute to a conversation.</p>
<p>This can be useful in environments where speakers do not remain in one location.</p>
<p>For example, a teacher may move from the front of a classroom to work with students at different tables. In a meeting, participants may contribute from different sides of the room. Rather than relying on a fixed microphone position, the ceiling-mounted system can adapt to the location of the speaker.</p>
<p>Sennheiser also includes enhanced exclusion zones, which are designed to help manage unwanted audio pickup and support camera-tracking applications in more complex rooms.</p>
<p>The TCC M Plus is designed to support speech intelligibility while also providing features such as <b>TruVoiceLift</b> for in-room voice reinforcement. Sennheiser specifies a frequency response of 100 Hz to 16 kHz and a signal-to-noise ratio of 79 dB(A).</p>
<p>These capabilities can be relevant to both in-person and hybrid environments. Remote participants need to hear people in the room clearly, while those physically present may also benefit from voice reinforcement in larger spaces.</p>
<p>However, microphone technology is only one part of the result. Room acoustics, background noise, ceiling height, speaker positioning and loudspeaker selection should all be considered when designing a system.</p>
<h3><b>Integration with Modern AV Systems</b></h3>
<p>A professional microphone rarely operates independently. In a meeting or teaching space, audio may need to work alongside loudspeakers, cameras, digital signal processors, control systems and conferencing platforms.</p>
<p>The TCC M Plus provides several connectivity options, including single-cable, split-mode and daisy-chain configurations. It also supports <b>Dante</b>, allowing it to form part of a compatible networked audio system.</p>
<p>Another feature is <b>PartnerLink</b>, which allows supported third-party AV platforms to configure the microphone within their own workflows.</p>
<p>Sennheiser initially announced Q-SYS integration through PartnerLink, allowing the TCC M Plus to be configured within Q-SYS Designer. The company has also indicated that PartnerLink is intended to support additional platforms over time.</p>
<p>For AV and IT teams, this type of integration can help bring compatible devices into a more unified system environment.</p>
<p>The exact approach will depend on the organisation’s existing infrastructure and the requirements of the room. Compatibility between the microphone, DSP, conferencing platform, cameras, control system and network should be established during the design process.</p>
<h3><b>Centralised Device Management</b></h3>
<p>For a single meeting room, managing AV equipment can be relatively straightforward. The challenge becomes greater when an organisation has multiple classrooms, meeting rooms or buildings.</p>
<p>The TCC M Plus integrates with <b>Sennheiser DeviceHub</b>, the company’s cloud-based platform for device management. According to Sennheiser, DeviceHub provides centralised visibility, remote monitoring, configuration and diagnostics, as well as role-based access.</p>
<figure id="attachment_13529" aria-describedby="caption-attachment-13529" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/Zz0xMzcwM2ZjY2U3ZGMxMWYwYjViMzc2OGVlOGU5N2FlYQ.jpg"><img decoding="async" class="size-large wp-image-13529" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/Zz0xMzcwM2ZjY2U3ZGMxMWYwYjViMzc2OGVlOGU5N2FlYQ-1024x576.jpg" alt="person managing Sennheiser devices with the DeviceHub" width="1024" height="576" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/Zz0xMzcwM2ZjY2U3ZGMxMWYwYjViMzc2OGVlOGU5N2FlYQ-1024x576.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/Zz0xMzcwM2ZjY2U3ZGMxMWYwYjViMzc2OGVlOGU5N2FlYQ-300x169.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/Zz0xMzcwM2ZjY2U3ZGMxMWYwYjViMzc2OGVlOGU5N2FlYQ-768x432.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/Zz0xMzcwM2ZjY2U3ZGMxMWYwYjViMzc2OGVlOGU5N2FlYQ.jpg 1080w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13529" class="wp-caption-text">Easily manage your Sennheiser TeamConnect mics and other Sennheiser products with the Sennheiser DeviceHub.</figcaption></figure>
<p>This can be particularly useful for schools and organisations with distributed AV infrastructure.</p>
<p>An IT or AV team may need to monitor equipment across multiple rooms without physically visiting every location. Centralised management can provide a way to maintain visibility of compatible devices and support troubleshooting and configuration from a central environment.</p>
<p>For larger deployments, this approach can also help make AV management more consistent as additional compatible devices are introduced.</p>
<h3><b>Installation and Room Design</b></h3>
<p>The TCC M Plus measures approximately <b>591 mm square and 46 mm high</b>, with a weight of approximately <b>4.1 kg</b>. It can be installed using the supplied flush-mount or suspension hardware, giving installers options depending on the ceiling and room requirements.</p>
<p>Its ceiling-mounted format is designed to keep the microphone above the activity taking place below.</p>
<p>However, installation should not be considered separately from the rest of the room. Ceiling construction, services, lighting, ceiling height and access requirements all need to be considered before installation.</p>
<p>Acoustics are equally important. Hard surfaces, reverberation and background noise can affect microphone performance, regardless of the technology being used. Loudspeaker placement should also be considered carefully so that the system provides appropriate coverage without creating unnecessary sound entering the microphone.</p>
<p>For this reason, a ceiling microphone should be specified as part of a complete room design rather than simply added to an existing space without assessing its acoustic and technical conditions.</p>
<h3><b>Where Can the TeamConnect Ceiling M Plus Be Used?</b></h3>
<p>The TCC M Plus is designed for medium and large spaces where people may speak from different positions.</p>
<p><b>Meeting and boardrooms</b><b><br />
</b>In conferencing environments, ceiling pickup can provide an alternative to multiple tabletop microphones, particularly where participants need to move around the room.</p>
<p><b>Training and professional learning rooms</b><b><br />
</b>Flexible training spaces can benefit from microphone coverage that is not tied to one particular furniture arrangement.</p>
<p><b>Collaboration spaces</b><b><br />
</b>Rooms used for workshops, presentations and group discussions can use ceiling microphone technology to support conversations occurring across the space.</p>
<p><b>Multipurpose and divisible rooms</b><b><br />
</b>Where spaces are used for different activities, microphone placement needs to work with changing room layouts. A ceiling-based approach can provide greater design flexibility, although larger or divisible spaces may require multiple microphones and additional system design.</p>
<p>The appropriate configuration will depend on the room size, acoustics, expected usage and wider AV requirements.</p>
<h3><b>The Right Microphone Depends on the Room</b></h3>
<p>Choosing a ceiling microphone is not simply a matter of selecting a model with the right specifications. Room dimensions, acoustics, ceiling construction, expected speaker locations, conferencing requirements and existing AV infrastructure all influence whether this approach is suitable.</p>
<p>For schools and businesses, these factors also need to be considered alongside how the space is actually used.</p>
<p>A classroom designed for teacher-led instruction may have different requirements from a flexible learning area used for group activities. Similarly, a boardroom may prioritise conferencing and camera integration, while a training room may need to accommodate presentations, workshops and different furniture arrangements.</p>
<p>An AV assessment can help determine whether the TCC M Plus is appropriate for the space, how it should integrate with the wider system, and what additional components may be required.</p>
<p>This approach also helps organisations avoid treating the microphone as an isolated product decision. The most effective solution is one where microphone coverage, acoustics, loudspeakers, DSP, cameras, control and network infrastructure are considered together.</p>
<h3><b>A Considered Approach to Modern AV Audio</b></h3>
<p>The Sennheiser TeamConnect Ceiling M Plus brings together automatic dynamic beamforming, ceiling-based voice capture, flexible connectivity, Dante support, PartnerLink integration and centralised management through DeviceHub.</p>
<p>For schools and businesses, its value lies in how these features can be incorporated into a carefully designed room. Where people need to move, collaborate and communicate from different positions, ceiling microphone technology can provide an alternative to more traditional microphone arrangements.</p>
<p>The important question is not simply whether the TCC M Plus has the right features, but whether those features are appropriate for the room, its users and the wider AV system.</p>
<h3><b>Planning an AV Upgrade?</b></h3>
<p>If you’re considering ceiling microphone technology for a classroom, meeting room, training space or other flexible environment, <b>D.I.B Audio Visual</b> can help you assess the right approach for your space and AV requirements.</p>
<p><a href="https://dibaustralia.com.au/contact-us/">Contact D.I.B Audio Visual</a> at <a href="mailto:info@dibaustralia.com.au"><b>info@dibaustralia.com.au</b></a> or <b>03 9457 4800</b> to discuss your project.</p>
<p>The post <a href="https://dibaustralia.com.au/sennheiser-teamconnect-ceiling-m-plus-smarter-audio-for-flexible-spaces/">Sennheiser TeamConnect Ceiling M Plus: Smarter Audio for Flexible Spaces</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Bosch PROSPERO: A Networked PA and Bell System for Schools</title>
		<link>https://dibaustralia.com.au/bosch-prospero-a-networked-pa-and-bell-system-for-schools/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=bosch-prospero-a-networked-pa-and-bell-system-for-schools</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Thu, 10 Sep 2026 06:35:32 +0000</pubDate>
				<category><![CDATA[New Gymnasium Products]]></category>
		<category><![CDATA[New Meeting Room Products]]></category>
		<category><![CDATA[New Theatre/Hall Products]]></category>
		<category><![CDATA[New Classroom Products]]></category>
		<category><![CDATA[Products]]></category>
		<category><![CDATA[school paging system]]></category>
		<category><![CDATA[school bell system]]></category>
		<category><![CDATA[school public address system]]></category>
		<category><![CDATA[school audio system]]></category>
		<category><![CDATA[networked school PA system]]></category>
		<category><![CDATA[IP paging system]]></category>
		<category><![CDATA[networked paging system]]></category>
		<category><![CDATA[school bell and paging system]]></category>
		<category><![CDATA[Bosch PROSPERO]]></category>
		<category><![CDATA[Bosch PROSPERO school PA system]]></category>
		<category><![CDATA[Bosch PROSPERO paging system]]></category>
		<category><![CDATA[Bosch networked PA system]]></category>
		<category><![CDATA[IP public address system]]></category>
		<category><![CDATA[networked public address system]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13497</guid>

					<description><![CDATA[<p>A school PA system supports some of the most routine forms of communication across a campus. Bells mark the beginning and end of lessons, staff make announcements, and audio may need to reach individual classrooms, buildings, halls or outdoor areas. As school technology becomes increasingly networked, public address systems are evolving too. Instead of relying [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/bosch-prospero-a-networked-pa-and-bell-system-for-schools/">Bosch PROSPERO: A Networked PA and Bell System for Schools</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>A school PA system supports some of the most routine forms of communication across a campus. Bells mark the beginning and end of lessons, staff make announcements, and audio may need to reach individual classrooms, buildings, halls or outdoor areas.</p>
<p>As school technology becomes increasingly networked, public address systems are evolving too. Instead of relying entirely on traditional audio cabling, networked systems can use IP infrastructure to connect paging stations, speakers and other components across a site.</p>
<p><b>Bosch PROSPERO</b> is one example of this approach. Designed for medium-sized environments, including education, PROSPERO is an IP-based public address and voice evacuation system that brings paging, scheduled broadcasts and audio distribution together within a networked platform.</p>
<p>For schools considering a new school bell system, replacing an existing PA or reviewing their broader audio infrastructure, it provides an opportunity to consider what a networked approach could offer.</p>
<h3><b>What is Bosch PROSPERO?</b></h3>
<p>Bosch PROSPERO is an IP-based public address system designed for medium-sized applications. Its architecture allows compatible system components to communicate over a standard IP network, providing flexibility in how equipment is distributed across a site.</p>
<p>A PROSPERO installation can include IP call stations, networked speakers, audio interfaces, amplifiers and management software. Call stations and interface modules support Power over Ethernet (PoE), allowing network connectivity and power to be provided through a single network connection.</p>
<p>This can be particularly relevant for schools with multiple buildings or areas requiring different types of audio coverage.</p>
<p>However, an IP-based PA system still requires careful infrastructure planning. Network architecture, switching, PoE capacity, security and system availability all need to be considered as part of the overall design.</p>
<h3><b>A networked approach to school audio</b></h3>
<p>The principle behind an IP school PA system is straightforward: compatible devices communicate across the network, allowing audio and control information to be distributed between different parts of the campus.</p>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/Bosch-Prospero-Network.jpg"><img decoding="async" class="alignnone wp-image-13499 size-full" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/Bosch-Prospero-Network.jpg" alt="Diagram shows how Bosch Prospero products over the school can be connected through the IP Network" width="640" height="360" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/Bosch-Prospero-Network.jpg 640w, https://dibaustralia.com.au/wp-content/uploads/2026/09/Bosch-Prospero-Network-300x169.jpg 300w" sizes="(max-width: 640px) 100vw, 640px" /></a></p>
<p>This can provide an alternative to designing an entire system around one central equipment location.</p>
<p>The network therefore becomes an important part of the system design. Before an installation, the school&#8217;s existing IT and AV infrastructure should be assessed to determine whether it is appropriate for the proposed system and how the PA system should be integrated.</p>
<p>Existing speakers, amplifiers and cabling may also need to be assessed. Depending on their specifications and condition, some components may potentially be retained while others are upgraded.</p>
<h3><b>Managing school bells and scheduled broadcasts</b></h3>
<p>For many schools, the bell remains one of the primary functions of a campus-wide audio system.</p>
<p>The requirement may appear simple: play a signal at the correct time and in the appropriate areas. In practice, school schedules can change throughout the year.</p>
<p>Examination periods, timetable changes, student-free days, special events and other activities may require different bell schedules.</p>
<p>PROSPERO includes built-in scheduling for broadcasts, with 24-hour scheduling and the ability to switch between different scheduling plans.</p>
<p>This allows a school to manage different schedules rather than relying on one fixed timetable.</p>
<p>The important consideration is not simply whether a system can schedule a bell, but whether its scheduling functionality reflects how the school actually operates.</p>
<h3><b>Paging different areas of a school</b></h3>
<p>A school does not necessarily need every announcement to be heard everywhere.</p>
<p>A message for administration may not need to interrupt classes across the entire campus. Similarly, an announcement relating to an event in a gymnasium or hall may only need to reach that particular area.</p>
<p>This is where <b>zoned paging</b> becomes useful.</p>
<p>PROSPERO supports zone-based functions, allowing authorised users to direct audio to selected areas. Its software includes functions such as zone monitoring, scheduled broadcasts and system configuration.</p>
<p>Depending on the campus, zones could include:</p>
<ul>
<li aria-level="1">Classrooms</li>
<li aria-level="1">Administration</li>
<li aria-level="1">Staff areas</li>
<li aria-level="1">Libraries</li>
<li aria-level="1">Halls and gymnasiums</li>
<li aria-level="1">Outdoor areas</li>
<li aria-level="1">Individual buildings</li>
<li aria-level="1">The wider campus</li>
</ul>
<p>The right zoning arrangement will depend on the school&#8217;s layout and communication requirements. Mapping these requirements before installation helps ensure the system is designed around how the school actually operates.</p>
<h3><b>Connecting classroom audio to the wider system</b></h3>
<p>Classroom audio is another consideration when planning a school PA upgrade.</p>
<p>PROSPERO includes IP speakers designed for classroom environments. The speakers provide local audio inputs for everyday use and a high-priority input, while the system&#8217;s Exam Mode is designed specifically for listening-test applications.</p>
<p>This means classroom audio can form part of the wider public address infrastructure rather than necessarily being treated as an entirely separate system.</p>
<p>The requirements of individual classrooms will still vary. A room that primarily needs general announcements may have different requirements from a teaching space that also needs local audio for multimedia, teacher voice reinforcement or other sources.</p>
<p>Speaker selection and placement should therefore take into account the room&#8217;s size, acoustics and intended use.</p>
<h3><b>Exam Mode for listening tests</b></h3>
<p>Examinations can introduce additional requirements for school audio systems, particularly where listening tests are involved.</p>
<p>In these situations, the audio being delivered to students needs to remain available throughout the examination.</p>
<p>PROSPERO includes an <b>Exam Mode</b> specifically designed for listening-test scenarios. Bosch states that the feature is intended to allow critical content, including exam material, to continue playing even during network or power interruptions.</p>
<p>This is a specific feature for examination applications rather than a substitute for broader backup-power, emergency or business-continuity planning.</p>
<p>Schools should consider their examination procedures and infrastructure requirements when determining how this functionality should be implemented.</p>
<h3><b>Managing a networked PA system</b></h3>
<p>Another difference between a traditional bell system and a networked PA system is how it can be managed.</p>
<p>PROSPERO uses a browser/server architecture. The server-side control software runs on a Windows Server operating system, while users can access the web-based management interface through a standard browser. Multiple clients can log in simultaneously.</p>
<p>The system includes authentication and management functions covering areas such as:</p>
<ul>
<li aria-level="1">Scheduled broadcasts</li>
<li aria-level="1">Pre-recorded messages</li>
<li aria-level="1">Zone monitoring</li>
<li aria-level="1">System logs</li>
<li aria-level="1">System configuration</li>
<li aria-level="1">Emergency tasks</li>
</ul>
<p>The PROSPERO call station also provides touchscreen controls alongside physical Push-to-Talk and emergency broadcast buttons.</p>
<p>For schools, this provides a combination of centralised software management and physical controls for everyday paging.</p>
<p>User permissions can also be considered during configuration, particularly where different staff members have different responsibilities for operating or managing the system.</p>
<h3><b>Can PROSPERO work with existing infrastructure?</b></h3>
<p>Upgrading a school bell or PA system does not necessarily mean replacing every component of an existing installation.</p>
<p>PROSPERO includes IP-enabled interface modules that can transmit audio and control signals over the network. The system can also accommodate external audio sources and provide control connections for applications such as zone volume control.</p>
<p>The system can be combined with Bosch SYNSONA amplifiers, including models using powerTANK technology to distribute available amplifier power across connected channels.</p>
<p>Whether existing school speakers, amplifiers, cabling or other equipment can be retained will depend on compatibility, condition and the specifications of the existing installation.</p>
<p>A site assessment is therefore an important part of planning an upgrade.</p>
<h3><b>School PA, bells and emergency communication</b></h3>
<p>Although bells, paging and emergency announcements can use the same overall audio infrastructure, they serve different purposes.</p>
<p>A <b>school bell system</b> provides scheduled signals to mark the beginning and end of lessons or activities.</p>
<p>A <b>paging system</b> allows authorised staff to make spoken announcements to particular areas or across the campus.</p>
<p>Other functions may include background music, pre-recorded messages and local classroom audio.</p>
<p>Emergency and voice evacuation applications have additional requirements because they may be relied upon during critical situations. Bosch positions PROSPERO as a public address and voice evacuation system and includes emergency-task functionality.</p>
<p>However, a standard paging installation should not automatically be assumed to satisfy every requirement for emergency or voice evacuation applications. Where these functions are required, the system needs to be appropriately designed and configured for the building and application, with applicable requirements considered during the project.</p>
<h3><b>What should schools consider when upgrading a PA system?</b></h3>
<p>The starting point for a school audio upgrade should be how the campus communicates, rather than simply which equipment to purchase.</p>
<h4><b>Campus coverage</b></h4>
<p>Which areas require audio coverage? Consider classrooms, administration areas, halls, gymnasiums, libraries and outdoor spaces.</p>
<h4><b>Zoning</b></h4>
<p>Which areas need to receive announcements independently, and which should operate together?</p>
<h4><b>Existing infrastructure</b></h4>
<p>What speakers, amplifiers, cabling and network infrastructure are already available, and what condition are they in?</p>
<h4><b>Bell scheduling</b></h4>
<p>Does the school use one standard timetable, or are different schedules required throughout the year?</p>
<h4><b>Classroom requirements</b></h4>
<p>Do classrooms only need general announcements, or is local audio also required?</p>
<h4><b>Network infrastructure</b></h4>
<p>If an IP paging system is being considered, does the existing network provide the switching, PoE and architecture required for the proposed installation?</p>
<h4><b>Emergency requirements</b></h4>
<p>Does the system need to support emergency or voice evacuation functions? These requirements should be established before the system is specified.</p>
<h4><b>Future expansion</b></h4>
<p>Could additional classrooms, buildings or zones need to be added later?</p>
<p>Answering these questions first can help ensure the system is designed around the school&#8217;s operational requirements rather than simply replacing one set of hardware with another.</p>
<h3><b>Is Bosch PROSPERO suitable for schools?</b></h3>
<p>Bosch PROSPERO provides a networked approach to public address, paging and scheduled audio for medium-sized environments, with hardware and software specifically optimised for education applications.</p>
<p>For schools, it may be relevant where there is a requirement for functions such as:</p>
<ul>
<li aria-level="1">Scheduled school bells</li>
<li aria-level="1">Zoned paging</li>
<li aria-level="1">Campus-wide announcements</li>
<li aria-level="1">Classroom audio</li>
<li aria-level="1">Pre-recorded messages</li>
<li aria-level="1">Networked audio distribution</li>
<li aria-level="1">Centralised system management</li>
<li aria-level="1">Examination listening audio</li>
</ul>
<p>Whether it is the appropriate choice will depend on the individual school.</p>
<p>Campus size, building layout, acoustic conditions, existing AV and IT infrastructure, network capacity and operational requirements all influence the design of a school public address system.</p>
<h3><b>A connected approach to school communication</b></h3>
<p>The role of a school PA system can extend beyond simply sounding a bell or making a campus-wide announcement. Depending on the school&#8217;s requirements, the same broader infrastructure may support scheduled bells, paging, classroom audio and other forms of communication.</p>
<p>Networked systems such as Bosch PROSPERO provide one approach to bringing these functions together through an IP-based architecture.</p>
<p>For schools planning a new school bell system, upgrading an existing PA or reviewing their wider audio infrastructure, the starting point should be how the campus needs to communicate — and how those requirements may change over time.</p>
<p>D.I.B. Audio Visual can assess existing school AV infrastructure and help develop a public address, paging or bell system suited to the site&#8217;s layout, network environment and operational requirements.</p>
<p><b>To discuss a public address solution for your school or workplace,</b><a href="https://dibaustralia.com.au/contact-us/"> <b>contact D.I.B. Audio Visual</b></a><b> on 03 9457 4800 or </b><a href="mailto:info@dibaustralia.com.au"><b>info@dibaustralia.com.au</b></a><b>.</b></p>
<p>The post <a href="https://dibaustralia.com.au/bosch-prospero-a-networked-pa-and-bell-system-for-schools/">Bosch PROSPERO: A Networked PA and Bell System for Schools</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
		<item>
		<title>What Is Wireless Presentation? A Guide for Schools and Offices</title>
		<link>https://dibaustralia.com.au/what-is-wireless-presentation-a-guide-for-schools-and-offices/?utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=what-is-wireless-presentation-a-guide-for-schools-and-offices</link>

		<dc:creator><![CDATA[Marketing]]></dc:creator>
		<pubDate>Fri, 04 Sep 2026 00:56:29 +0000</pubDate>
				<category><![CDATA[FAQs]]></category>
		<category><![CDATA[wireless display technology]]></category>
		<category><![CDATA[classroom AV solutions]]></category>
		<category><![CDATA[wireless presentation system]]></category>
		<category><![CDATA[school AV technology]]></category>
		<category><![CDATA[meeting room AV solutions]]></category>
		<category><![CDATA[classroom collaboration technology]]></category>
		<category><![CDATA[digital signage for schools]]></category>
		<category><![CDATA[wireless presentation]]></category>
		<category><![CDATA[what is wireless presentation]]></category>
		<category><![CDATA[wireless presentation technology]]></category>
		<category><![CDATA[wireless screen sharing]]></category>
		<category><![CDATA[wireless screen mirroring]]></category>
		<category><![CDATA[wireless presentation for schools]]></category>
		<category><![CDATA[wireless presentation for classrooms]]></category>
		<category><![CDATA[wireless presentation for offices]]></category>
		<category><![CDATA[wireless presentation for meeting rooms]]></category>
		<category><![CDATA[wireless collaboration]]></category>
		<category><![CDATA[classroom wireless presentation]]></category>
		<category><![CDATA[meeting room wireless presentation]]></category>
		<category><![CDATA[wireless content sharing]]></category>
		<category><![CDATA[screen sharing technology]]></category>
		<category><![CDATA[Vivi wireless presentation]]></category>
		<category><![CDATA[Vivi for schools]]></category>
		<category><![CDATA[wireless presentation systems Australia]]></category>
		<guid isPermaLink="false">https://dibaustralia.com.au/?p=13471</guid>

					<description><![CDATA[<p>Sharing a laptop screen with a display or projector traditionally meant finding the right cable, connecting an adapter and selecting the correct input. Wireless presentation provides another option. Instead of physically connecting a device to the room&#8217;s display system, users can share content wirelessly from a laptop, tablet or smartphone. Wireless presentation is increasingly used [&#8230;]</p>
<p>The post <a href="https://dibaustralia.com.au/what-is-wireless-presentation-a-guide-for-schools-and-offices/">What Is Wireless Presentation? A Guide for Schools and Offices</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p>Sharing a laptop screen with a display or projector traditionally meant finding the right cable, connecting an adapter and selecting the correct input.</p>
<p><b>Wireless presentation</b> provides another option. Instead of physically connecting a device to the room&#8217;s display system, users can share content wirelessly from a laptop, tablet or smartphone.</p>
<p>Wireless presentation is increasingly used in classrooms, meeting rooms, training spaces and collaborative environments. But what exactly is it, how does it work, and what should schools and businesses consider before choosing a system?</p>
<h3><b>What Is Wireless Presentation?</b></h3>
<p>Wireless presentation is a technology that allows users to <b>share content from a laptop, tablet or smartphone to a display, projector or interactive panel without a physical video connection between the device and display</b>.</p>
<p>Depending on the solution, users may be able to mirror their entire screen or share specific content such as a presentation, document, website or application.</p>
<p>Wireless presentation may be built into a display or projector, provided through software, or delivered using a dedicated wireless presentation device connected to the room&#8217;s AV system.</p>
<p>The exact features vary between manufacturers, but the basic purpose is to provide a convenient way for users to get content from their own devices onto a shared screen.</p>
<h3><b>How Does Wireless Presentation Work?</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-inforgraphic.jpg"><img decoding="async" class="alignnone size-large wp-image-13473" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-inforgraphic-1024x427.jpg" alt="infographic of how wireless presentation works" width="1024" height="427" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-inforgraphic-1024x427.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-inforgraphic-300x125.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-inforgraphic-768x320.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-inforgraphic.jpg 1201w" sizes="(max-width: 1024px) 100vw, 1024px" /></a></p>
<p>A typical wireless presentation setup includes three main components:</p>
<ul>
<li aria-level="1"><b>User device:</b> A laptop, tablet or smartphone containing the content.</li>
<li aria-level="1"><b>Wireless presentation system:</b> Software, an integrated feature or a dedicated device that receives the shared content.</li>
<li aria-level="1"><b>Display system:</b> A projector, interactive display, LED display or other screen.</li>
</ul>
<p>The user&#8217;s device connects to the wireless presentation system, either through a wireless network or another wireless connection supported by the solution. The selected content is then transmitted to the room display.</p>
<p>The process varies between technologies. Some systems support common wireless display protocols, while others require an application, browser interface or dedicated software.</p>
<p>For schools and businesses, it is therefore important to understand the connectivity and infrastructure requirements of the particular system being considered.</p>
<h3><b>What Can You Share Wirelessly?</b></h3>
<p>Wireless presentation is primarily designed for sharing visual content. Depending on the system, this can include:</p>
<ul>
<li aria-level="1">PowerPoint and other presentations</li>
<li aria-level="1">Documents and spreadsheets</li>
<li aria-level="1">Websites</li>
<li aria-level="1">Images</li>
<li aria-level="1">Videos</li>
<li aria-level="1">Applications</li>
<li aria-level="1">Interactive content</li>
<li aria-level="1">Laptop or tablet screens</li>
</ul>
<p>Some dedicated systems also provide features such as multiple-device connectivity, presenter management, moderation and collaboration tools.</p>
<p>This means there can be a significant difference between simply mirroring a device&#8217;s screen and using a dedicated wireless presentation platform.</p>
<h3><b>What Are Some Examples of Wireless Presentation Technology?</b></h3>
<p>Wireless presentation is a broad category rather than a single technology or product.</p>
<p>Some displays and projectors support wireless display technologies such as <a href="https://www.apple.com/ph/airplay/"><b>Apple AirPlay</b></a><b>, </b><a href="https://support.google.com/googlecast/answer/6102923?hl=en"><b>Google Cast</b></a><b> or </b><a href="https://dibaustralia.com.au/what-is-mirrorcast/"><b>Miracast</b></a>, allowing compatible devices to share or mirror content without a traditional video cable.</p>
<p>There are also dedicated wireless presentation platforms designed for shared environments.</p>
<p><a href="https://www.vivi.io/"><b>Vivi</b></a>, for example, is a wireless presentation and collaboration platform designed with education in mind. It allows teachers and students to share content from their devices to classroom displays and provides additional tools intended to support classroom collaboration.</p>
<figure id="attachment_13474" aria-describedby="caption-attachment-13474" style="width: 1024px" class="wp-caption alignnone"><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-scaled.jpg"><img decoding="async" class="wp-image-13474 size-large" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-1024x461.jpg" alt="Heatherwood School’s classrooms equipped with Vivi wireless presentation" width="1024" height="461" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-1024x461.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-300x135.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-768x346.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-1536x692.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-2048x922.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/09/20240611_122542-Edited-scaled.jpg 1280w" sizes="(max-width: 1024px) 100vw, 1024px" /></a><figcaption id="caption-attachment-13474" class="wp-caption-text">With Vivi in <a href="https://dibaustralia.com.au/portfolio/heatherwood-school/">Heatherwood School’s classrooms</a>, teachers can display anything they need—videos, websites, presentations, and exercises.</figcaption></figure>
<p>Vivi can also be used beyond traditional classroom presentation. For example,<a href="https://dibaustralia.com.au/portfolio/how-footscray-west-primary-school-improved-communication-with-outdoor-digital-signage/"> <b>Footscray West Primary School integrated its existing Vivi platform with outdoor digital signage displays</b></a>, allowing staff to publish announcements, event information and school news through a system they were already familiar with. This shows how a wireless presentation platform can form part of a broader school AV and communication environment rather than being limited to lesson presentation.</p>
<p>Other dedicated wireless presentation solutions are available for schools, offices and meeting environments, with different features for connectivity, presenter management and collaboration.</p>
<p>When comparing solutions, it is therefore useful to look beyond the term &#8220;wireless presentation&#8221; and consider how each technology works with the devices, displays, network and security requirements of the environment.</p>
<h3><b>Wireless Presentation in Schools</b></h3>
<p>Wireless presentation can be useful in classrooms where teachers and students regularly use different devices.</p>
<p>A teacher might share a lesson presentation from a laptop, while a student could later present a project from another device. In collaborative activities, several students may need to contribute content to the classroom display.</p>
<p>A wireless presentation system can reduce the need to repeatedly connect and disconnect video cables as users change.</p>
<p>It can also be useful in:</p>
<ul>
<li aria-level="1">Staff meeting rooms</li>
<li aria-level="1">Professional development spaces</li>
<li aria-level="1">Libraries</li>
<li aria-level="1">Flexible learning areas</li>
<li aria-level="1">Training rooms</li>
<li aria-level="1">Lecture spaces</li>
<li aria-level="1">Collaborative learning environments</li>
</ul>
<p>For schools, however, the AV system is only one part of the solution. IT teams should also consider network configuration, device compatibility, security policies and how the system will be managed across multiple rooms.</p>
<h3><b>Wireless Presentation in Offices</b></h3>
<p><a href="https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-scaled.jpg"><img decoding="async" class="alignnone size-large wp-image-13475" src="https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-1024x534.jpg" alt="office meeting using wireless presentation" width="1024" height="534" srcset="https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-1024x534.jpg 1024w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-300x156.jpg 300w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-768x400.jpg 768w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-1536x800.jpg 1536w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-2048x1067.jpg 2048w, https://dibaustralia.com.au/wp-content/uploads/2026/09/wireless-presentation-office-scaled.jpg 1280w" sizes="(max-width: 1024px) 100vw, 1024px" /></a></p>
<p>Wireless presentation can provide similar benefits in meeting and collaboration spaces.</p>
<p>Rather than requiring every presenter to connect a laptop to a room cable, compatible devices can connect wirelessly and share their content.</p>
<p>This can be useful when:</p>
<p><b>Several people are presenting:</b> Users can change presenters without physically swapping video cables.</p>
<p><b>Teams are collaborating:</b> Participants can share documents, ideas and screens from their own devices.</p>
<p><b>Training is taking place:</b> Trainers can present from their own laptop while participants may contribute content, depending on the system.</p>
<p><b>Hybrid meetings are being held:</b> Wireless presentation can work alongside video conferencing equipment, allowing local presenters to share content within the room while remote participants join through the conferencing platform.</p>
<p>The right approach depends on how the room is used and which features are actually required.</p>
<h3><b>Is Wireless Presentation the Same as Screen Mirroring?</b></h3>
<p>Not necessarily.</p>
<p><b>Screen mirroring</b> generally means reproducing a device&#8217;s screen on another display. Wireless presentation can include screen mirroring, but dedicated presentation systems may offer additional functionality.</p>
<p>For example, a system may allow several users to connect, provide control over which device appears on the main display, or include moderation and collaboration features.</p>
<p>If a room simply needs to display one laptop screen, basic wireless display functionality may be sufficient. A classroom or meeting room with multiple presenters may require a more comprehensive presentation platform.</p>
<h3><b>What Are the Benefits of Wireless Presentation?</b></h3>
<p>Wireless presentation can offer several practical advantages when appropriately designed for the environment.</p>
<h3><b>Reduced reliance on cables</b></h3>
<p>Users do not necessarily need to locate and connect an HDMI, USB-C or other video cable every time they want to present.</p>
<p>This can be particularly useful in shared rooms where different people use different devices.</p>
<h3><b>Easier presenter changes</b></h3>
<p>Where several people need to present, wireless connectivity can make it easier to move between presenters without physically changing the room connection.</p>
<h3><b>Greater device flexibility</b></h3>
<p>Depending on the solution, users may be able to present from laptops, tablets and smartphones across different operating systems.</p>
<h3><b>Collaboration features</b></h3>
<p>Dedicated systems may support multiple connected users and provide tools for managing or moderating shared content.</p>
<p>However, wireless presentation is not automatically the best option for every application. It should be selected according to the requirements of the room.</p>
<h3><b>Are There Any Disadvantages?</b></h3>
<p>Wireless presentation also has limitations that should be considered during system design.</p>
<p>Performance can depend on <b>wireless coverage, network conditions, device compatibility and the particular technology being used</b>.</p>
<p>Network congestion or poor wireless coverage can affect the user experience, while compatibility may vary between devices and operating systems.</p>
<p>There are also situations where a wired connection remains preferable. Applications requiring very low latency or highly predictable performance may benefit from a direct connection. HDMI or USB-C can also provide a straightforward option without relying on wireless connectivity.</p>
<p>For these reasons, many professional AV installations provide <b>both wired and wireless presentation options</b>.</p>
<h3><b>Does Wireless Presentation Require Wi-Fi?</b></h3>
<p>Many wireless presentation systems use Wi-Fi, but they do not all operate in exactly the same way.</p>
<p>Some connect through an existing wireless network, while others can establish or use a separate wireless connection.</p>
<p>Before deploying a system, IT teams should understand:</p>
<ul>
<li aria-level="1">Whether it requires access to the existing network</li>
<li aria-level="1">Which network ports or protocols are required</li>
<li aria-level="1">Whether internet access is necessary</li>
<li aria-level="1">How guest devices are handled</li>
<li aria-level="1">What security controls are available</li>
<li aria-level="1">Whether it can operate across VLANs or segmented networks</li>
<li aria-level="1">How software and firmware updates are managed</li>
</ul>
<p>These requirements vary between products and should be checked against the manufacturer&#8217;s technical documentation.</p>
<h3><b>Is Wireless Presentation Secure?</b></h3>
<p>Security should be considered whenever devices are sharing information wirelessly.</p>
<p>Depending on the solution, security and access features may include authentication, encryption, PIN codes, user permissions or network-based restrictions.</p>
<p>Schools and organisations should determine <b>who can connect and who can share content</b>.</p>
<p>For example, an open meeting space may require different access controls from a classroom used only by authorised staff and students.</p>
<p>Wireless presentation should therefore form part of the organisation&#8217;s broader network and information-security approach.</p>
<h3><b>Wireless Presentation vs HDMI: Which Is Better?</b></h3>
<p>There is no universal answer.</p>
<p><b>Wireless presentation</b> can provide flexibility and convenience when multiple people need to share content from different devices.</p>
<p><b>HDMI or USB-C</b> provides a direct physical connection and can offer predictable performance without depending on wireless network conditions.</p>
<p>For many schools and workplaces, providing <b>both options</b> is the most practical approach.</p>
<p>Wireless connectivity can handle everyday presentation needs, while a wired connection remains available when users need a direct or alternative connection.</p>
<h3><b>What Should Schools and Businesses Consider?</b></h3>
<p>Before choosing a wireless presentation solution, consider how the space will actually be used.</p>
<ol>
<li><b> Who will use the room?</b></li>
</ol>
<p>A classroom, boardroom and training room can have very different requirements.</p>
<ol start="2">
<li><b> Which devices need to connect?</b></li>
</ol>
<p>Check compatibility with the laptops, tablets and smartphones commonly used by staff, students and visitors.</p>
<ol start="3">
<li><b> How is the network configured?</b></li>
</ol>
<p>IT teams should confirm that the system is compatible with the organisation&#8217;s network architecture and security policies.</p>
<ol start="4">
<li><b> How many people need to present?</b></li>
</ol>
<p>If multiple users regularly share content, consider whether features such as presenter management or moderation are required.</p>
<ol start="5">
<li><b> Is a wired connection still needed?</b></li>
</ol>
<p>Retaining HDMI or USB-C connectivity can provide an alternative when wireless presentation is unsuitable or unavailable.</p>
<ol start="6">
<li><b> How will the system be managed?</b></li>
</ol>
<p>Consider installation, configuration, software updates, troubleshooting and ongoing support, particularly when deploying systems across multiple rooms.</p>
<h3><b>Is Wireless Presentation Right for Your Room?</b></h3>
<p>Wireless presentation can provide a practical way for teachers, students, employees and visitors to share content on a common display.</p>
<p>However, the right solution depends on the <b>room, users, devices, network infrastructure and existing AV equipment</b>.</p>
<p>For some spaces, built-in wireless display functionality may be sufficient. Others may benefit from a dedicated wireless presentation platform with additional management and collaboration features.</p>
<p>The goal should not simply be to make a room wireless. Instead, the presentation system should be designed around how people actually use the space.</p>
<h3><b>Wireless Presentation Solutions for Schools and Workplaces</b></h3>
<p>Wireless presentation can form part of a broader AV system incorporating displays, projectors, interactive panels, audio, video conferencing and room control.</p>
<p>D.I.B. Audio Visual helps schools and organisations assess their presentation requirements and design an AV solution that balances usability, connectivity, performance and manageability.</p>
<p><b>To discuss a wireless presentation solution for your school or workplace, </b><a href="https://dibaustralia.com.au/contact-us/"><b>contact D.I.B. Audio Visual</b></a><b> on 03 9457 4800 or </b><a href="mailto:info@dibaustralia.com.au"><b>info@dibaustralia.com.au</b></a><b>.</b></p>
<p>The post <a href="https://dibaustralia.com.au/what-is-wireless-presentation-a-guide-for-schools-and-offices/">What Is Wireless Presentation? A Guide for Schools and Offices</a> appeared first on <a href="https://dibaustralia.com.au">DIB AudioVisual</a>.</p>
]]></content:encoded>



			</item>
	</channel>
</rss>
